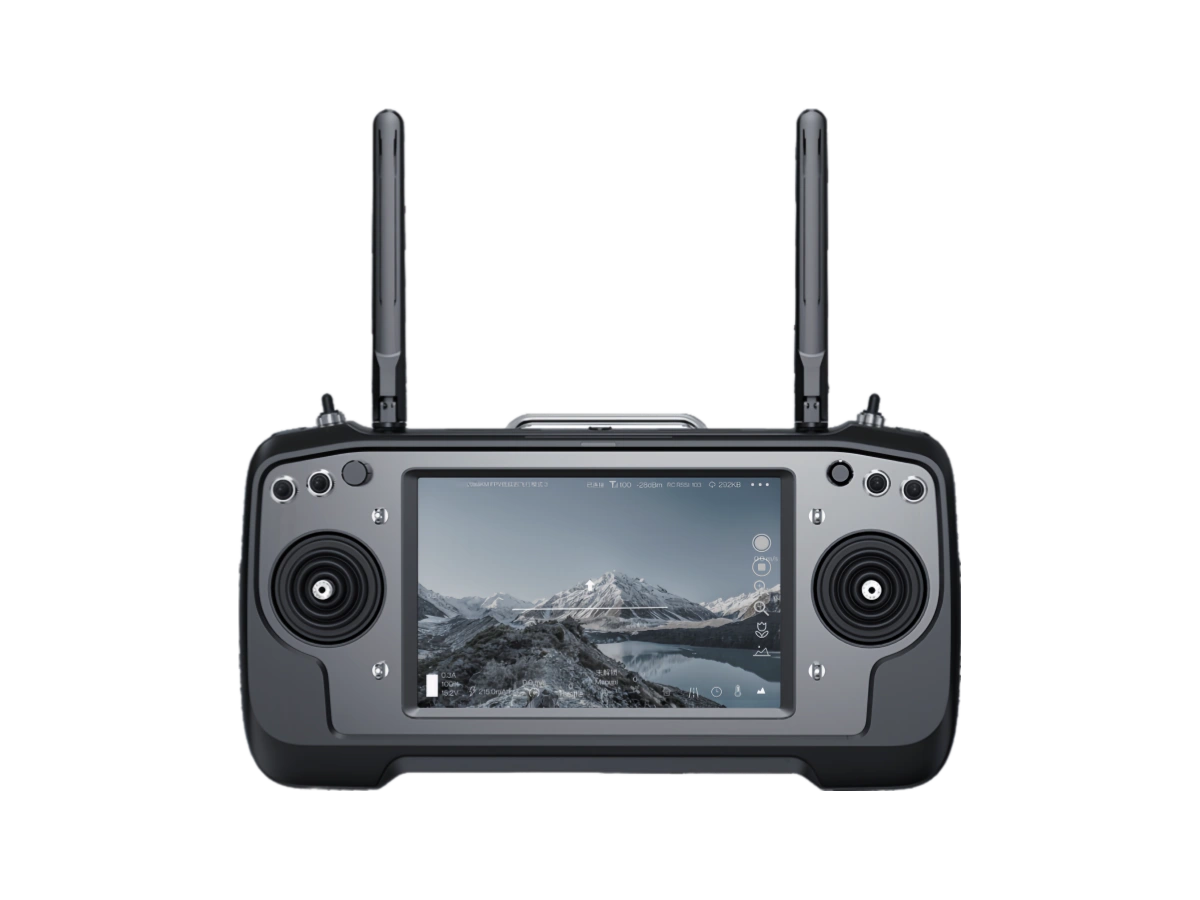

FC-YK32 UAV Remote Controller
Product Overview
The FC-YK32 is an industrial handheld ground station integrating remote control, data transmission, and wireless HD video transmission. It is equipped with a 7-inch HD high-brightness touch screen that remains visible under strong outdoor light. It uses a Qualcomm octa-core CPU and supports 1080P@60fps video-stream decoding. Based on SIYI HD video transmission technology, it reaches up to 15KM for video and data transmission, supports dual-operator control, relay control, and OSD telemetry display, meeting multi-scenario operating needs for UAVs and intelligent mobile devices.
Key Selling Points
- 15KM long range: transmission and control relay
- 1080P dual video links: dual-operator control
- Qualcomm octa-core: deep Android platform integration
- High-brightness HD: 7-inch display
Product Parameters
| Parameter | Value |
|---|---|
| Maximum Unobstructed Communication Range | 15 KM |
| Processor | Qualcomm 8-core CPU |
| Communication Channels | 16 |
| Video Transmission Frequency | 5 GHz |
| Dimensions | 308 x 148 x 72 mm |
| Weight | 1440 g |
| Display | 7-inch 1080p; 1000 nits |
| Endurance | 10 hours |
| Battery | 10200 mAh |
| Fast Charging | PD 30W |
| Versions | Standard, HDMI, dual-control relay |
| Interfaces | HDMI, USB, Type-C, SIM, LAN |
