N-TET

FC-FDJ-55 UAV Engine

Product Overview
Displacement
55.6cm3
Static thrust
14.5kg/altitude 100m
Main applications
gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
FC-FDJ-55 UAV engine with displacement 55.6cm3, power/performance 5.5HP/8500rpm, static thrust 14.5kg/altitude 100m.

Product Introduction

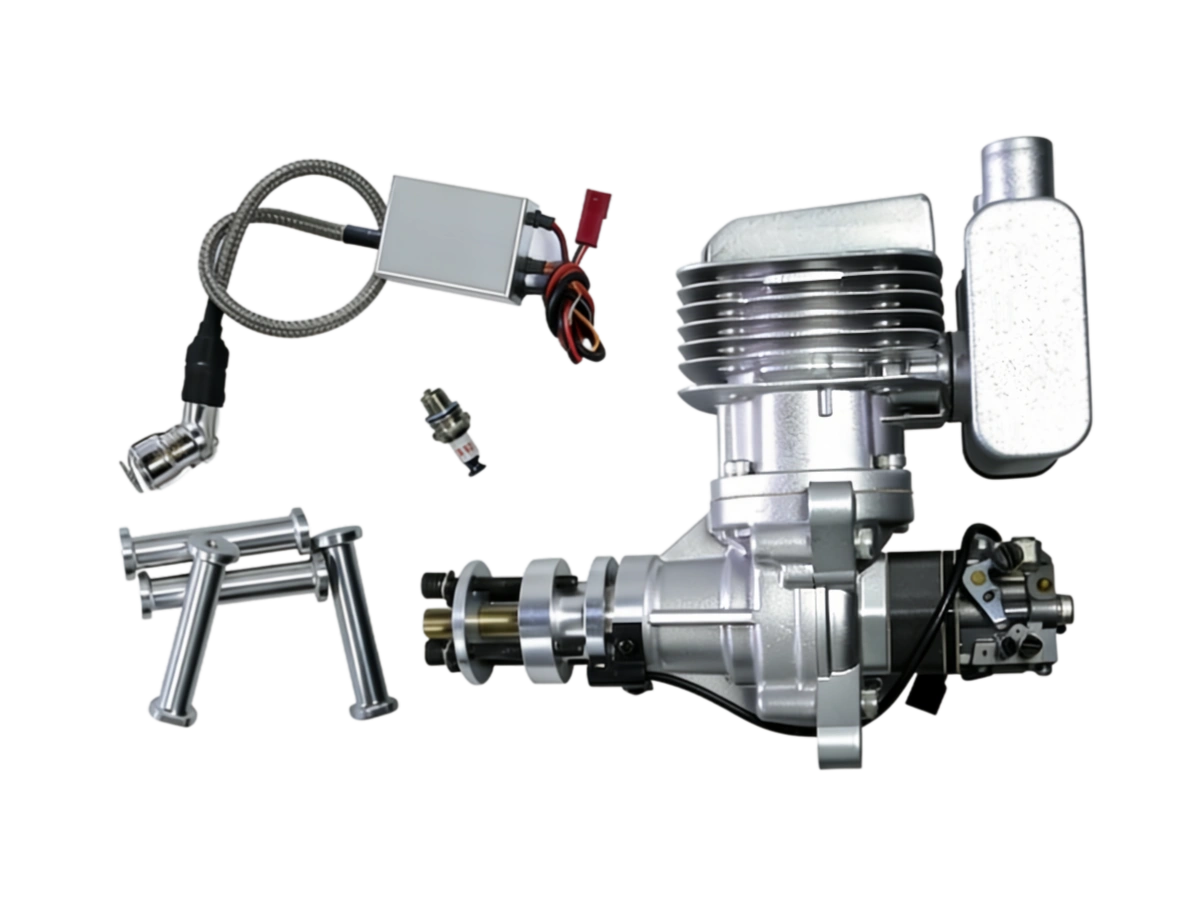

FC-FDJ-55 is a 55CC gasoline model-aircraft engine with a single cylinder, rear exhaust, two-stroke design, and support for extended exhaust pipes.

Technical Specifications

ParameterDescription
Performance5.5HP/8500rpm
Idle speed1500 rpm
Static thrust14.5kg/altitude 100m
Static thrust (2)12.8kg/altitude 1800m
Recommended propeller22*8; 22*10; 23*8; 23*10
Spark plug typeNGK CM6
Displacement55.6cm3
Bore * stroke45mm*35mm
Compression ratio7.6:1
Lubrication ratio30:1
Main engine weight1330g
Exhaust weight150g
Ignition weight140g
Ignition voltage4.8V-8.4V
