N-TET

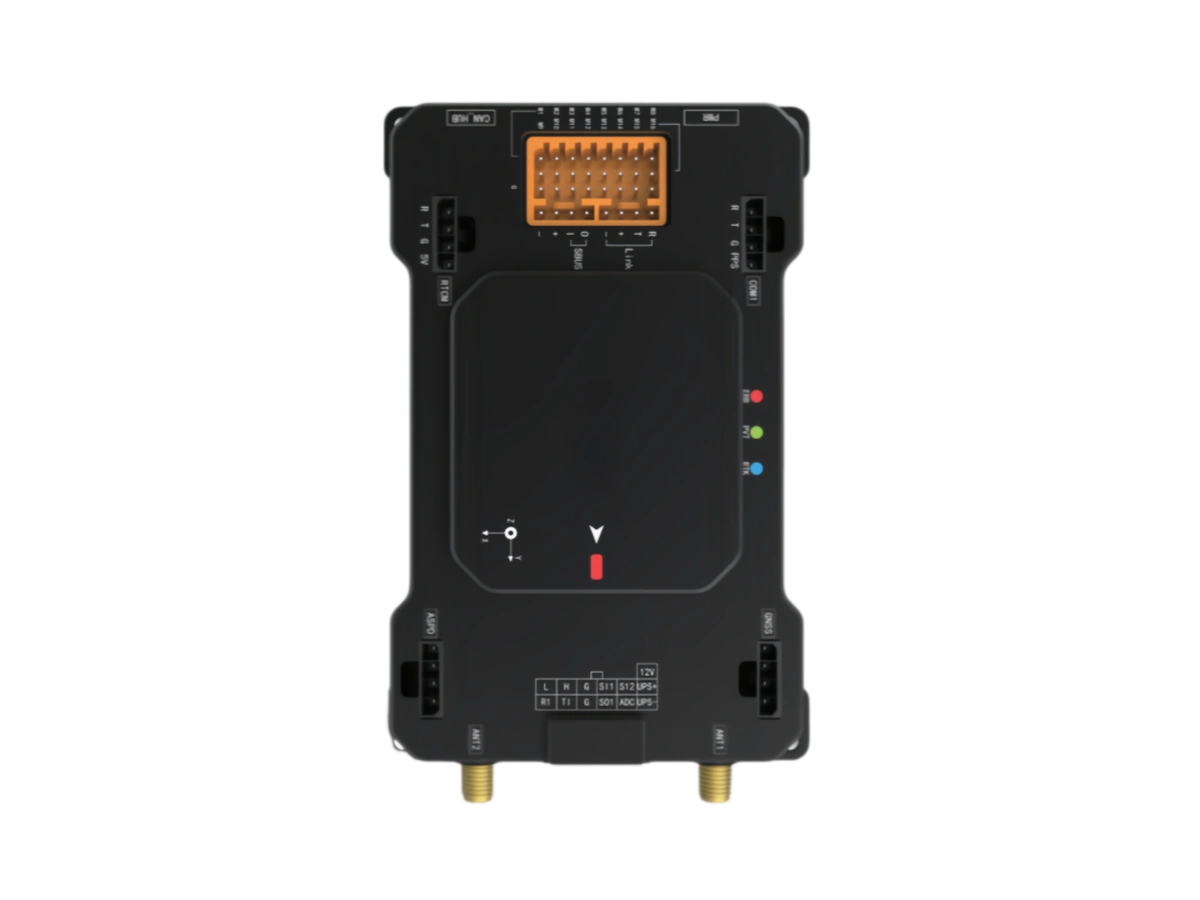

FC-U10-PRO Flight Controller

Product Overview
Power input
16V-120V
Key Parameter
Supports up to 16-rotor UAVs with UPS power backup
Application
Heavy-lift multirotor UAV flight-control applications with BeiDou-only expansion and high-precision RTK positioning.
The FC-U10-PRO integrates high-precision RTK, supports 16V-120V power input, up to 16-rotor UAV platforms, and UPS backup for heavy-lift flight-control applications.

Product Introduction

The FC-U10-PRO integrates a high-precision RTK module, supports BeiDou-only expansion, supports power input up to 120V, supports up to 16-rotor UAVs, and includes UPS power backup. It is reliable and suitable for heavy-lift UAV applications.

Technical Specifications

ParameterDescription
Dimensions117mm*76mm*22mm
Power Input16V~120V
UPS Endurance25min at maximum power consumption
Operating Temperature-40°C~60°C
Attitude Accuracy0.2°
Heading Accuracy0.5°
Horizontal Positioning AccuracyRTK: 0.1m Single point: 2m
Altitude Positioning AccuracyRTK: 0.1m Single point: 3m
Max Horizontal Speed30m/s
Max Climb Speed6m/s
Max Formation Size Supported100 aircraft
Supported Alternate Landing Points10

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.

Home/Drone Accessories/FC-U10-PRO Flight Controller
FC-U10-PRO Flight Controller
Power input: 16V-120V
Supports up to 16-rotor UAVs with UPS power backup
Applications: Heavy-lift multirotor UAV flight-control applications with BeiDou-only expansion and high-precision RTK positioning.
Get quotation
The FC-U10-PRO integrates high-precision RTK, supports 16V-120V power input, up to 16-rotor UAV platforms, and UPS backup for heavy-lift flight-control applications.

Overview

Product Introduction

The FC-U10-PRO integrates a high-precision RTK module, supports BeiDou-only expansion, supports power input up to 120V, supports up to 16-rotor UAVs, and includes UPS power backup. It is reliable and suitable for heavy-lift UAV applications.

Technical Specifications

Dimensions117mm*76mm*22mm
Power Input16V~120V
UPS Endurance25min at maximum power consumption
Operating Temperature-40°C~60°C
Attitude Accuracy0.2°
Heading Accuracy0.5°
Horizontal Positioning AccuracyRTK: 0.1m Single point: 2m
Altitude Positioning AccuracyRTK: 0.1m Single point: 3m
Max Horizontal Speed30m/s
Max Climb Speed6m/s
Max Formation Size Supported100 aircraft
Supported Alternate Landing Points10
