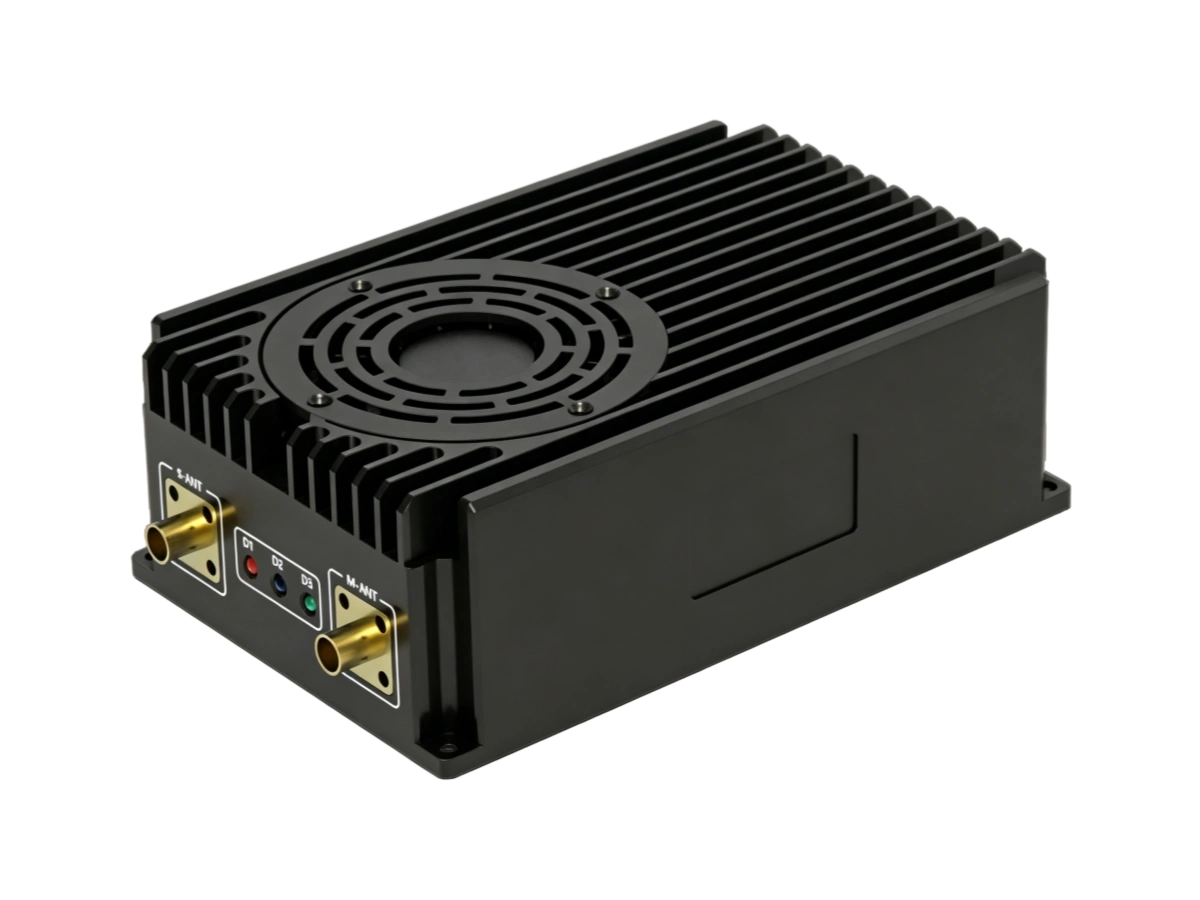

FC-SJL-50 UAV Data Link

Product Introduction

The UAV video-and-data radio is designed for unmanned intelligent platforms (UAV/USV/UGV) and robotic cluster communication networks. It integrates long-range wireless communication and multi-protocol interface adaptation to provide 50km+ real-time air-to-ground video, audio, telemetry, and remote-control data exchange.

The device provides multiple service interfaces, including two Ethernet ports, two transparent serial ports, and one S.BUS interface. With a compact, lightweight, quick-install, and easy-to-operate design, it is suitable for integrated video-and-data wireless transmission on UAVs, unmanned boats, unmanned vehicles, robots, and similar platforms. Interfaces can be customized as required.

Key Features

• Long-Range Communication
  With a 2dBi onboard antenna, the radio supports data communication over 50km.
• HD Video Transmission
  Supports smooth 1080P video transmission.
• Low Latency
  Air-interface one-way latency is below 15ms.
• Encrypted Transmission
  Supports AES128/256 encryption methods.
• Fast Deployment
  No complex binding process is required; air-to-ground HD video and flight-data links can be established quickly.
