N-TET

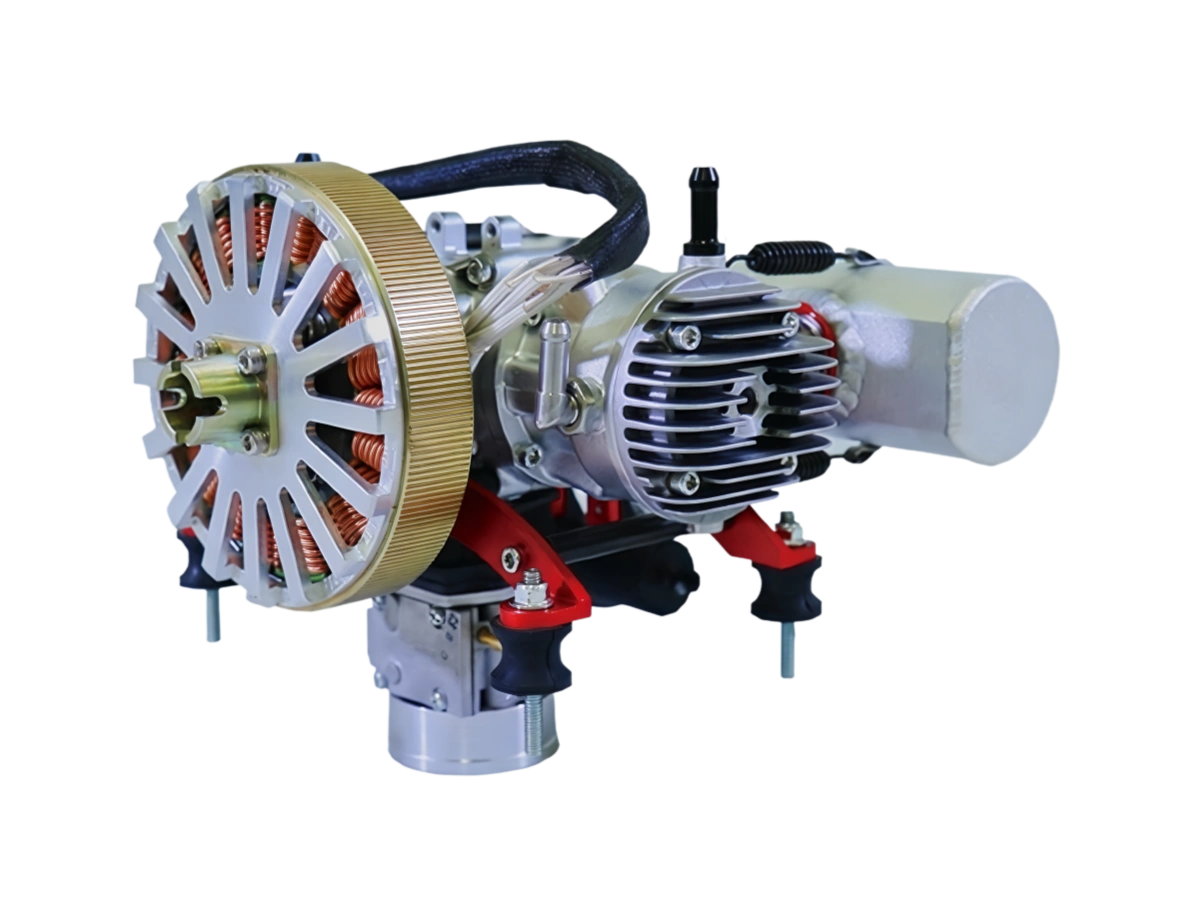

FC-FDJ-120HD UAV Engine

Product Overview
Engine displacement
120cm3
Generator power
7.35KW(0altitude)/8000rpm
Main applications
gasoline UAV engine power systems for two-cylinder UAV platforms requiring stable propulsion and generator output.
FC-FDJ-120HD UAV engine with displacement 120cm3, power/performance 7.35KW(0altitude)/8000rpm.

Product Introduction

FC-FDJ-120HD is a 120CC gasoline UAV engine with a two-cylinder, two-stroke configuration.

Technical Specifications

ParameterDescription
Engine typehorizontally opposed two-cylinder water-cooled
Bore * stroke47mm*35mm
Engine displacement120cm3
Engine weight6.2kg(excluding accessories)
Starting modeexternal handheld starter
Throttle controlautomatic control across the full power range
Ignition type12V CDI DC ignition
Generator typethree-phase permanent-magnet generator
Generator voltageDC50V
Generator power7.35KW(0altitude)/8000rpm

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.

Home/Drone Accessories/FC-FDJ-120HD UAV Engine
FC-FDJ-120HD UAV Engine
Engine displacement: 120cm3
Generator power: 7.35KW(0altitude)/8000rpm
Main applications: gasoline UAV engine power systems for two-cylinder UAV platforms requiring stable propulsion and generator output.
Get quotation
FC-FDJ-120HD UAV engine with displacement 120cm3, power/performance 7.35KW(0altitude)/8000rpm.

Overview

Product Introduction

FC-FDJ-120HD is a 120CC gasoline UAV engine with a two-cylinder, two-stroke configuration.

Technical Specifications

Engine typehorizontally opposed two-cylinder water-cooled
Bore * stroke47mm*35mm
Engine displacement120cm3
Engine weight6.2kg(excluding accessories)
Starting modeexternal handheld starter
Throttle controlautomatic control across the full power range
Ignition type12V CDI DC ignition
Generator typethree-phase permanent-magnet generator
Generator voltageDC50V
Generator power7.35KW(0altitude)/8000rpm
