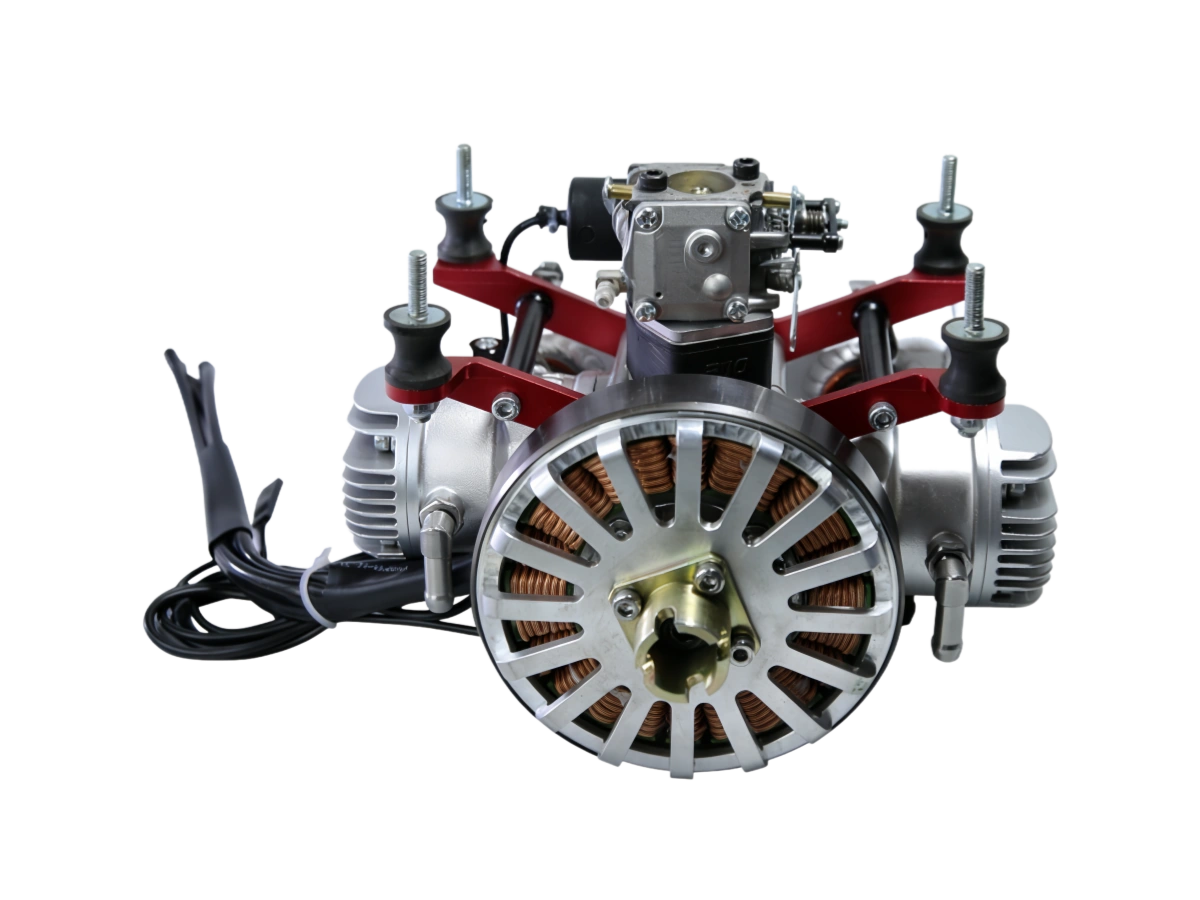

FC-FDJ-70HD UAV Engine

Product Overview
Engine displacement
70cm3
Generator power
4.2KW(0altitude)/8300rpm
Main applications
gasoline UAV engine power systems for two-cylinder UAV platforms requiring stable propulsion and generator output.
FC-FDJ-70HD UAV engine with displacement 70cm3, power/performance 4.2KW(0altitude)/8300rpm.

Product Introduction

FC-FDJ-70HD is a 70CC gasoline UAV engine with a two-cylinder, two-stroke configuration.

Technical Specifications

ParameterDescription
Engine typehorizontally opposed two-cylinder water-cooled
Bore * stroke38.5mm×30mm
Engine displacement70cm3
Engine weight4.8kg(excluding accessories)
Starting modeexternal handheld starter
Throttle controlautomatic control across the full power range
Ignition type12V CDI DC ignition
Generator typethree-phase permanent-magnet generator
Generator voltageDC50V
Generator power4.2KW(0altitude)/8300rpm
