FC-FDJ-61 UAV Engine

Product Overview
Displacement
60cm3
Static thrust
15kg/altitude 100m
Main applications
gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
FC-FDJ-61 UAV engine with displacement 60cm3, power/performance 6HP/7500rpm, static thrust 15kg/altitude 100m.

Product Introduction

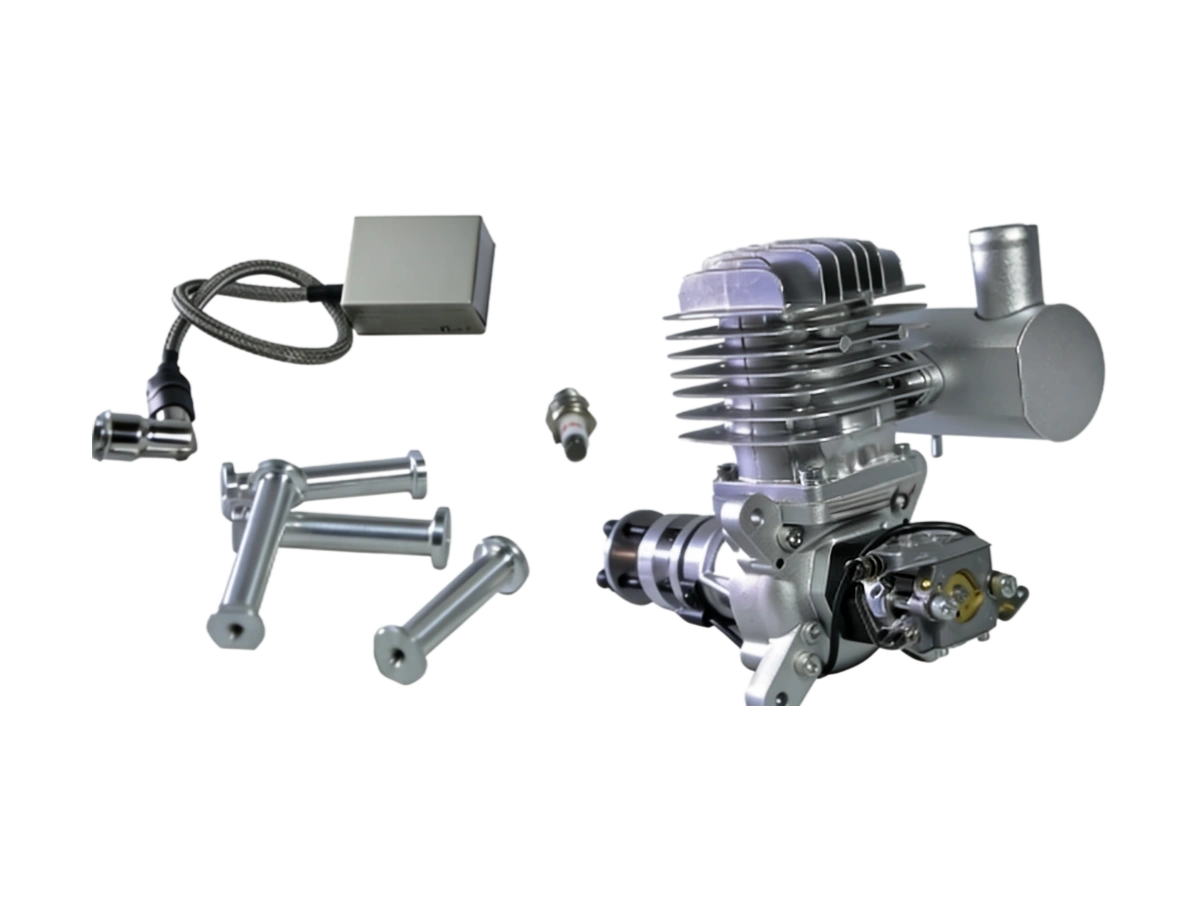

FC-FDJ-61 is a 61CC gasoline model-aircraft engine with a single cylinder, side exhaust, and two-stroke design.

Technical Specifications

ParameterDescription
Performance6HP/7500rpm
Idle speed1400 rpm
Static thrust15kg/altitude 100m
Static thrust (2)13kg/altitude 1800m
Recommended propeller22*10; 23*8; 23*10; 24*8
Spark plug typeNGK CM6
Displacement60cm3
Bore * stroke47mm*35mm
Compression ratio10.5:1
Lubrication ratio30:1
Main engine weight1370g
Exhaust weight150g
Ignition weight140g
Ignition voltage4.8V-8.4V

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.

Home/Drone Accessories/FC-FDJ-61 UAV Engine
FC-FDJ-61 UAV Engine
Displacement: 60cm3
Static thrust: 15kg/altitude 100m
Main applications: gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
Get quotation
FC-FDJ-61 UAV engine with displacement 60cm3, power/performance 6HP/7500rpm, static thrust 15kg/altitude 100m.

Overview

Product Introduction

FC-FDJ-61 is a 61CC gasoline model-aircraft engine with a single cylinder, side exhaust, and two-stroke design.

Technical Specifications

Performance6HP/7500rpm
Idle speed1400 rpm
Static thrust15kg/altitude 100m
Static thrust (2)13kg/altitude 1800m
Recommended propeller22*10; 23*8; 23*10; 24*8
Spark plug typeNGK CM6
Displacement60cm3
Bore * stroke47mm*35mm
Compression ratio10.5:1
Lubrication ratio30:1
Main engine weight1370g
Exhaust weight150g
Ignition weight140g
Ignition voltage4.8V-8.4V

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.
