Home > Drone Accessories > FC-PAE UAV Propeller

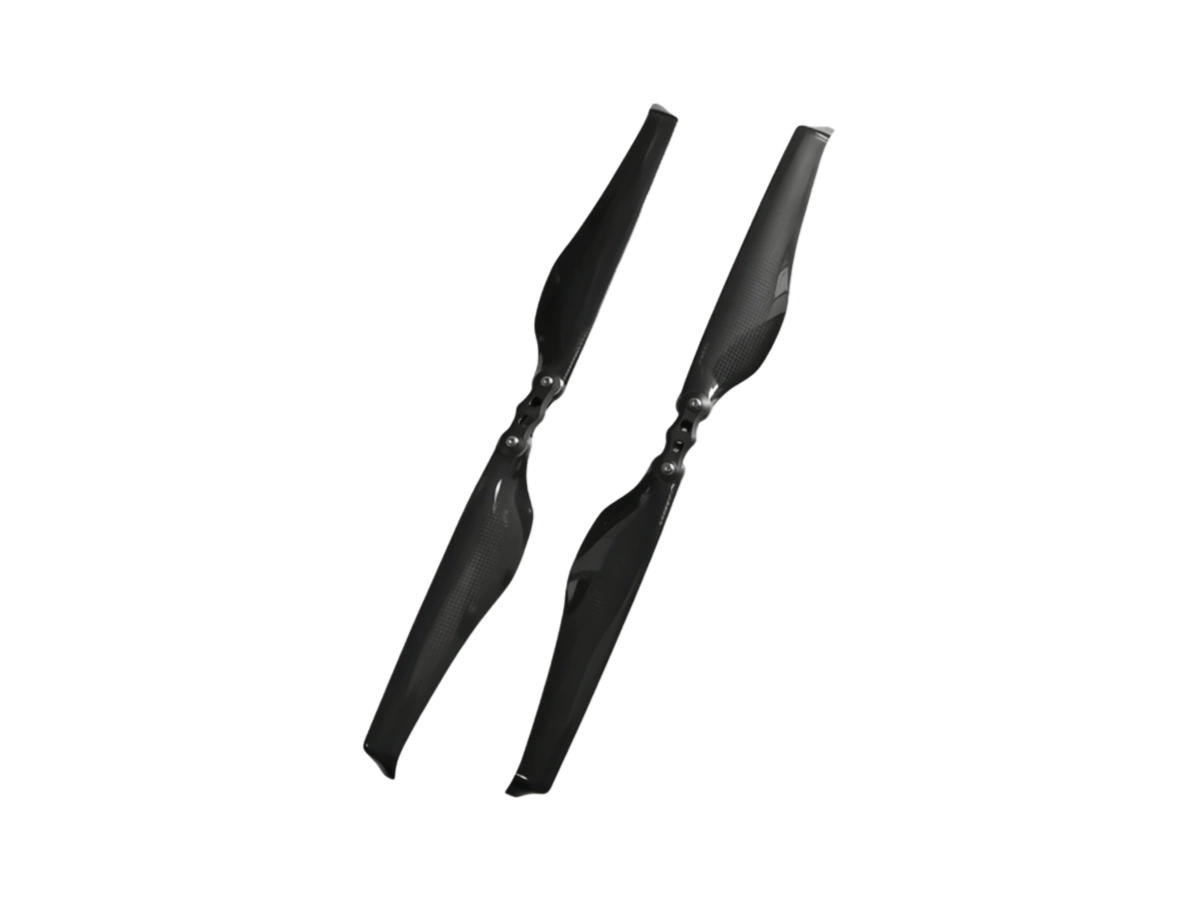

FC-PAE UAV Propeller

FC-PAE UAV Propeller

Product Overview
Dimension range
18.3~32.3 in
Max thrust
6.42kgf / peak efficiency: 20.14gf/W
Application
For UAV applications that require noise reduction, a smooth blade surface, high propeller efficiency, balance, and low vibration.
Get quotationWhatsApp
Dimension range: 18.3~32.3 in; maximum thrust: 6.42kgf (6520RPM); peak propeller efficiency: 20.14gf/W (1820RPM).

Noise reduction and smooth blade surface.

High propeller efficiency, good balance, and low vibration.

Technical Specifications

Dimensions

18.3~32.3 in

Test example

Example 20.3x6.6 (26.88℃, 998.4hPa, 48.66%Rh)

Performance table

ParameterDescription
Speed (RPM)1820
Thrust (kgf)0.47
Shaft power (W)23.25
Propeller efficiency (gf/W)20.14
ParameterDescription
Speed (RPM)2671
Thrust (kgf)1.00
Shaft power (W)69.09
Propeller efficiency (gf/W)14.43
ParameterDescription
Speed (RPM)3507
Thrust (kgf)1.71
Shaft power (W)152.05
Propeller efficiency (gf/W)11.21
ParameterDescription
Speed (RPM)4221
Thrust (kgf)2.57
Shaft power (W)271.41
Propeller efficiency (gf/W)9.47
ParameterDescription
Speed (RPM)4860
Thrust (kgf)3.45
Shaft power (W)415.31
Propeller efficiency (gf/W)8.30
ParameterDescription
Speed (RPM)5606
Thrust (kgf)4.54
Shaft power (W)629.35
Propeller efficiency (gf/W)7.21
ParameterDescription
Speed (RPM)6206
Thrust (kgf)5.73
Shaft power (W)871.53
Propeller efficiency (gf/W)6.58
ParameterDescription
Speed (RPM)6520
Thrust (kgf)6.42
Shaft power (W)1028.29
Propeller efficiency (gf/W)6.24

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.

Home/Drone Accessories/FC-PAE UAV Propeller
FC-PAE UAV Propeller
FC-PAE UAV Propeller
Dimension range: 18.3~32.3 in
Max thrust: 6.42kgf / peak efficiency: 20.14gf/W
Applications: For UAV applications that require noise reduction, a smooth blade surface, high propeller efficiency, balance, and low vibration.
Get quotation
Dimension range: 18.3~32.3 in; maximum thrust: 6.42kgf (6520RPM); peak propeller efficiency: 20.14gf/W (1820RPM).

Overview

Noise reduction and smooth blade surface.

High propeller efficiency, good balance, and low vibration.

Technical Specifications

Dimensions
18.3~32.3 in
Test example
Example 20.3x6.6 (26.88℃, 998.4hPa, 48.66%Rh)
Performance table
Speed (RPM)1820
Thrust (kgf)0.47
Shaft power (W)23.25
Propeller efficiency (gf/W)20.14
Speed (RPM)2671
Thrust (kgf)1.00
Shaft power (W)69.09
Propeller efficiency (gf/W)14.43
Speed (RPM)3507
Thrust (kgf)1.71
Shaft power (W)152.05
Propeller efficiency (gf/W)11.21
Speed (RPM)4221
Thrust (kgf)2.57
Shaft power (W)271.41
Propeller efficiency (gf/W)9.47
Speed (RPM)4860
Thrust (kgf)3.45
Shaft power (W)415.31
Propeller efficiency (gf/W)8.30
Speed (RPM)5606
Thrust (kgf)4.54
Shaft power (W)629.35
Propeller efficiency (gf/W)7.21
Speed (RPM)6206
Thrust (kgf)5.73
Shaft power (W)871.53
Propeller efficiency (gf/W)6.58
Speed (RPM)6520
Thrust (kgf)6.42
Shaft power (W)1028.29
Propeller efficiency (gf/W)6.24
