N-TET

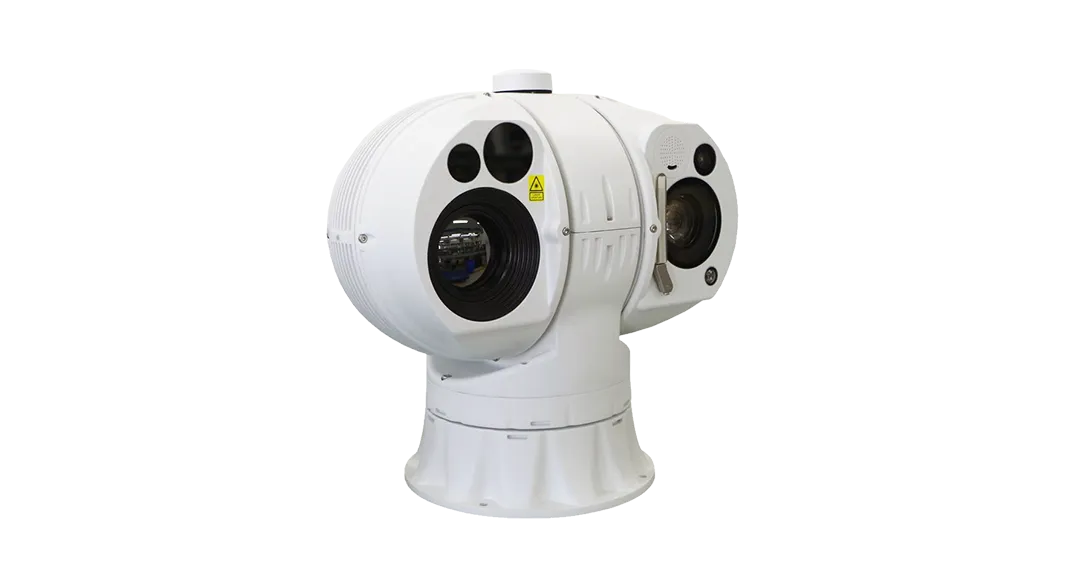

FC-DMS10 Series Smart Electronic Sentinel

Product Overview
Sensor
Back-illuminated Starlight-grade CMOS
Rotation Range
360° Continuous Pan; -90° to +90° Tilt
Applications
Rapid field deployment for border and industrial camps; integrated 'Detection & Deterrent' frontline Security; weather-resistant 24/7 surveillance in high-wind environments; mobile sentry and temporary site security.
The FC-DMS10 series intelligent electronic sentinel is a lightweight, multi-functional, multi-purpose, and intelligent optical detection device integrating various sensors, control modules, pointing devices, and intelligent algorithms. It can achieve functions such as reconnaissance and surveillance, situational awareness, and security early warning.

Key Features

  • Multi-spectral complementary advantages, meeting the working requirements under day and night and weather-resistant conditions.
  • Supports intelligent functions such as hotspot alarm, target detection, tracking, and device PHM health management.
  • Integrated design of detection and warning, integrating detection module and warning module.
  • Quasi-spherical structure design, better wind resistance and anti-shake performance, clearer imaging.
  • Flexible deployment, simple operation, stable and reliable, easy to maintain.

FC-DMS10 Series Smart Electronic Sentinel Technical Specifications

ParameterDescription
Visible Light1. Sensor: Back-illuminated ultra-low illumination starlight-grade CMOS 2. Resolution: 1920×1080 3. Illumination: Color: 0.0005Lux; B/W: 0.0001Lux; 0Lux (IR ON) 4. Lens Focal Length: 7mm~300mm/7mm~330mm 47x optical zoom 16x digital zoom 5. Focus Control: Manual/Auto focus
Thermal Radiation Lens (Optional)1. Detector: 6th generation uncooled focal plane array VOx detector 2. Resolution: 640×512/384×288 3. NETD: 40mK (@25℃ F1.0) 4. Lens Focal Length: 50mm/75mm/100mm fixed focus 5. Strong Light Protection: Supports anti-sunlight damage
Illumination1. Laser Type: HD floodlight homogenized light source 2. Illumination Angle: 3°~65° 3. Illumination Distance: 300 meters 1. Laser Type: HD floodlight homogenized light source 2. Illumination Angle: 1°~20° 3. Illumination Distance: 1000 meters Sound and Light Warning: Built-in integrated tweeter + strobe light, supports custom alarm sound and laser dazzling warning
PTZ1. Rotation Speed: Horizontal: 0.01°/s~100°/s; Tilt: 0.01°/s~80°/s 2. Rotation Range: Horizontal: 360° continuous rotation; Tilt: -90°~+90° 3. Presets: 3000
Interfaces1. Power Supply Interface: 1-ch DC12V~36V 2. Communication Interface: 1-ch RJ45 Ethernet port (supports optional 4G/5G transmission)
Power Consumption1. Peak Power Consumption: ≤60W
Dimensions1. Weight: ≤10kg (including load) 2. Dimensions: 312mm×200mm×298mm (L×W×H)
Environmental Adaptability1. Working Temperature: -40℃~60℃ 2. Working Humidity: ≤95% RH 3. Protection Level: IP67
Customization1. Supports customized function development

Get Expert Drone Defense Advice

Tell us the equipment, application or site you are reviewing. Our team can provide product information, technical documents, pricing and configuration support.

Step 1 of 2

Tell us about your project

*Deployment type

A short note is enough.

Home/Products/FC-DMS10 Series Smart Electronic Sentinel
FC-DMS10 Series Smart Electronic Sentinel
Sensor: Back-illuminated Starlight-grade CMOS
Rotation Range: 360° Continuous Pan; -90° to +90° Tilt
Applications: Rapid field deployment for border and industrial camps; integrated 'Detection & Deterrent' frontline Security; weather-resistant 24/7 surveillance in high-wind environments; mobile sentry and temporary site security.
Get quotation
The FC-DMS10 series intelligent electronic sentinel is a lightweight, multi-functional, multi-purpose, and intelligent optical detection device integrating various sensors, control modules, pointing devices, and intelligent algorithms. It can achieve functions such as reconnaissance and surveillance, situational awareness, and security early warning.

Overview

Key Features

  • Multi-spectral complementary advantages, meeting the working requirements under day and night and weather-resistant conditions.
  • Supports intelligent functions such as hotspot alarm, target detection, tracking, and device PHM health management.
  • Integrated design of detection and warning, integrating detection module and warning module.
  • Quasi-spherical structure design, better wind resistance and anti-shake performance, clearer imaging.
  • Flexible deployment, simple operation, stable and reliable, easy to maintain.

Technical Specifications

Visible Light1. Sensor: Back-illuminated ultra-low illumination starlight-grade CMOS 2. Resolution: 1920×1080 3. Illumination: Color: 0.0005Lux; B/W: 0.0001Lux; 0Lux (IR ON) 4. Lens Focal Length: 7mm~300mm/7mm~330mm 47x optical zoom 16x digital zoom 5. Focus Control: Manual/Auto focus
Thermal Radiation Lens (Optional)1. Detector: 6th generation uncooled focal plane array VOx detector 2. Resolution: 640×512/384×288 3. NETD: 40mK (@25℃ F1.0) 4. Lens Focal Length: 50mm/75mm/100mm fixed focus 5. Strong Light Protection: Supports anti-sunlight damage
Illumination1. Laser Type: HD floodlight homogenized light source 2. Illumination Angle: 3°~65° 3. Illumination Distance: 300 meters 1. Laser Type: HD floodlight homogenized light source 2. Illumination Angle: 1°~20° 3. Illumination Distance: 1000 meters Sound and Light Warning: Built-in integrated tweeter + strobe light, supports custom alarm sound and laser dazzling warning
PTZ1. Rotation Speed: Horizontal: 0.01°/s~100°/s; Tilt: 0.01°/s~80°/s 2. Rotation Range: Horizontal: 360° continuous rotation; Tilt: -90°~+90° 3. Presets: 3000
Interfaces1. Power Supply Interface: 1-ch DC12V~36V 2. Communication Interface: 1-ch RJ45 Ethernet port (supports optional 4G/5G transmission)
Power Consumption1. Peak Power Consumption: ≤60W
Dimensions1. Weight: ≤10kg (including load) 2. Dimensions: 312mm×200mm×298mm (L×W×H)
Environmental Adaptability1. Working Temperature: -40℃~60℃ 2. Working Humidity: ≤95% RH 3. Protection Level: IP67
Customization1. Supports customized function development
