N-TET

FC-FDJ-120 UAV Engine

Product Overview
Displacement
120cm3
Static thrust
26.5kg/altitude 100m
Main applications
gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
FC-FDJ-120 UAV engine with displacement 120cm3, power/performance 12HP/7500rpm, static thrust 26.5kg/altitude 100m.

Product Introduction

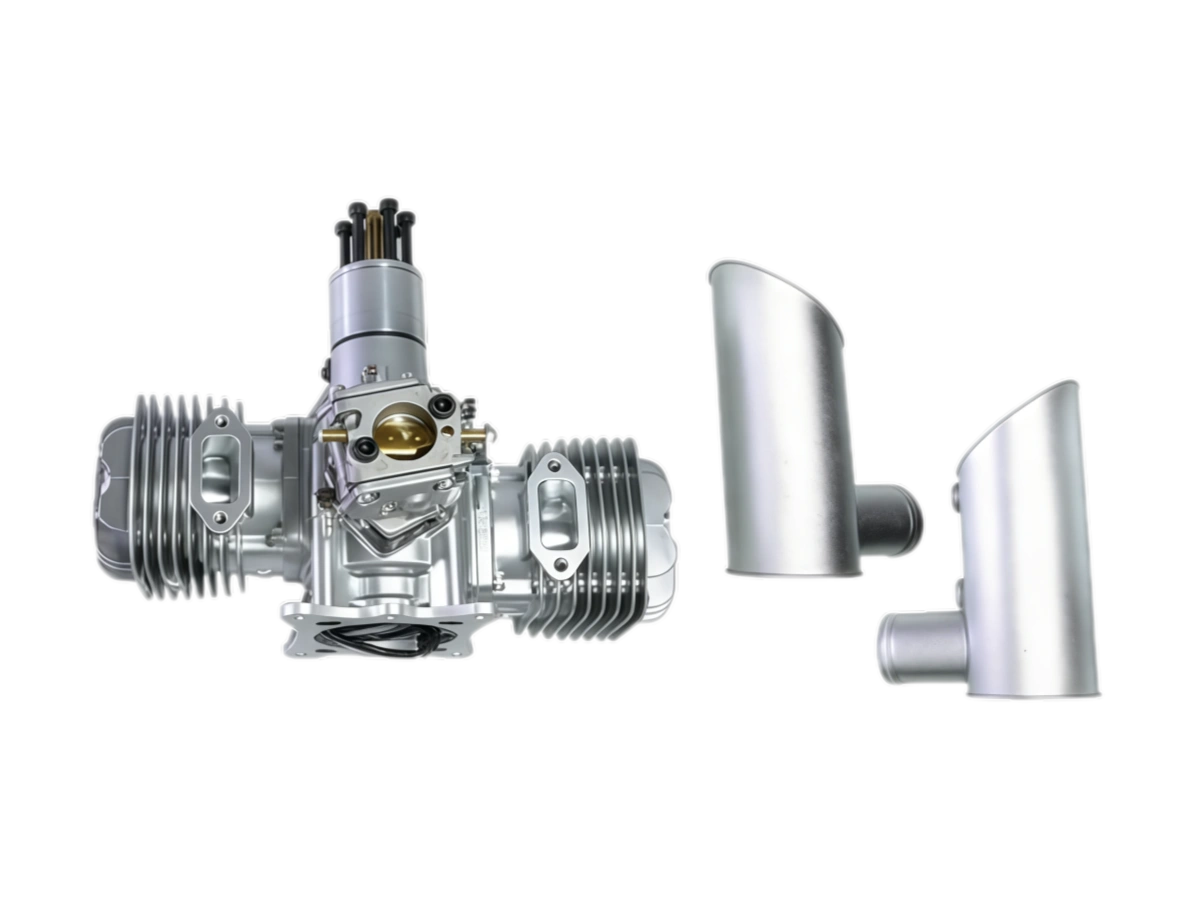

FC-FDJ-120 is a 120CC gasoline model-aircraft engine with a two-cylinder, two-stroke design.

Technical Specifications

ParameterDescription
Performance12HP/7500rpm
Idle speed1300 rpm
Static thrust26.5kg/altitude 100m
Static thrust (2)23.5kg/altitude 1800m
Recommended propeller26*10; 26*12; 27*10; 28*10
Spark plug typeNGK CM6
Displacement120cm3
Bore * stroke47mm*35mm
Compression ratio10.5:1
Lubrication ratio30:1
Main engine weight2400g
Exhaust weight300g
Ignition weight190g
Ignition voltage4.8V-8.4V
