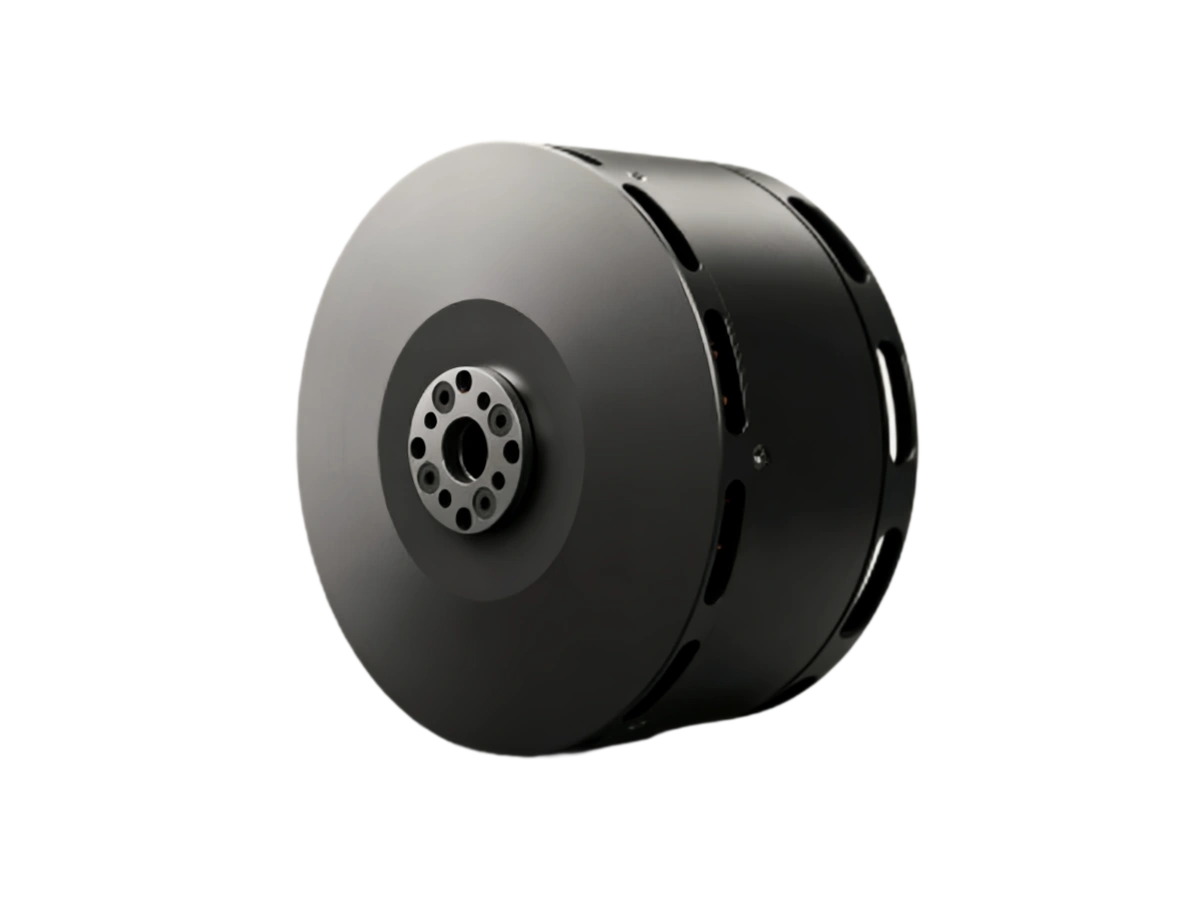

FC-U110 UAV Motor

FC-U110 UAV Motor

Product Overview
Max Thrust
45.5 kg
Rated Operating Voltage
12-14S
Application
Hand-wound stator with high slot fill and a clean appearance.; Unique motor structure with 36N30P multi-slot, multi-pole design.
Get quotationWhatsApp
FC-U110 UAV Motor core parameters: Max Thrust: 45.5 kg; Rated Operating Voltage: 12-14S; KV Value: 140 KV.

Product Introduction

Hand-wound stator with high slot fill and a clean appearance.

Unique motor structure with 36N30P multi-slot, multi-pole design.

Aerospace aluminum construction provides higher strength and better operational safety.

Magnetic flux density and magnetic circuit simulation help deliver high efficiency with low power loss.

Premium imported bearings provide smoother rotation and better impact resistance.

High-performance heat-resistant curved magnets improve performance by 5%.

Technical Specifications

Product Parameters

ParameterDescription
Motor ModelFC-U110
Pole Pairs15
Stator CoreHigh-quality silicon steel / 180°C high-temperature coating
Winding Wire Grade220°C
Motor DimensionsD:108.6 × 59.9 mm
Magnet Grade180°C
Protection RatingIP35
Lead Wire Specification150mm (lead wire）
Centrifugal Cooling DesignYES
Rotor Dynamic Balance≤5 mg
Propeller Mounting HolesD:20 M3×4, D:23 M4×4
Motor Dynamic Balance≤20 mg
Shaft DiameterIN: 15 mm
Motor Mounting HolesD:50 M5×4
BearingEZO SS 6202ZZ*2
Winding Withstand Voltage500 V

Technical Parameters

ParameterDescription
KV Value140 KV
Rated Operating Voltage12-14S
No-load Current5.8A / 20V
Phase-to-phase Resistance12mΩ
Motor Weight1200±50 g
Boxed Weight1320g (200 x 150 x 70 mm)
Max Current284.1 A
Max Power13111W
Max Thrust45.5 kg
Rated Output Power2173 W
Recommended ESCAMPX 200A (5-14S) / 300A (5-14S)
Recommended Propeller32X10.5/32.1*12.8/34*11.2/34.1*13.6
Recommended Takeoff Weight per Axis14kg ~ 18kg
Recommended Aircraft Takeoff Weight12S-32”/ 4axis60kg, 6axis90kg, 8axis120kg

Test Data

1195.03.32027609.180.317.6
5547.6434.231630.81337.14.190304711.581.997.1
6047.6542.472023.41680.54.820332913.383.056.6
FLUXER PRO 32x10.5AMPX 200A (5-145)6547.5552.172480.42097.85.590358415.384.576.2
7047.4665.743120.12699.16.770380718.486.515.9
7547.4276.623632.93094.17.330403119.985.175.5
8047.3192.394371.13724.48.310428022.485.215.1
8547.21110.385210.84417.19.360450624.784.774.7
0647.08131.276180.15187.610.480472727.883.944.5
5646.92156.527344.66170.311.930493931.084.014.2
10046.77174.858177.26838.212.68051509584.1
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (kgf)Efficiency (%)System Efficiency (gf/W)Motor Temperature (°C)
3055.869.48529.2367.11.73020264.769.378.8
3555.8513.17735.6536.52.23022976.072.938.2
4055.7917.53978.1756.22.84025437.777.317.9
4555.7124.161345.81084.03.63028526′680.557.4
5055.6732.341800.51485.04.420320812.182.486.7
5555.6043.482417.42016.95.480351514.983.436.2
6055.5258.093224.92659.46.690379618.083.505.6
FLUXER PRO 32x10.5AMPX 200A (5-145)6555.4668.533800.73167.57.470404920.283.805.3
7055.3884.354671.23939.28.730430923.484.335.0
7555.23104.585776.44876.010.200456526.684.414.6
8055.17118.106515.05525.110.900484028.884.804.4
8554.97144.557946.36629.712.500506532.483.434.1
0654.82173.279497.57887.814.210530136.983.053.9
5654.59199.9510916.18847.715.330551139.281.053.6
10054.58207.5111325.89037.115.640551840.579.793.6
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (kgf)Efficiency (%)System Efficiency (gf/W)Motor Temperature (°C)
3047.769.03431.0286.71.54017784.166.519.5
3547.7212.13579.0410.11.94020195.170.838.8
4047.6815.83754.9543.32.31022466.271.978.2
4547.6021.591027.3782.53.01024838.276.178.0
5047.5629.081383.11083.03.730277310.178.317.3
5547.5536.941756.61423.54.430306811.981.046.8
6047.4547.632260.31844.55.29014.081.616.2
FLUXER VTOL 32.1X12.8"AMPX 200A (5-145)6547.3759.392813.62329.86.240595516.882.806.0
7047.2572.943446.62899.47.300379519.584.105.7
7547.2086.064061.73454.68.220401321.285.055.2
8047.13104.214911.24187.99.390425923.885.274.8
8547.00124.965873.44966.210.600447427.284.554.6
0646.83148.466952.95819.411.840469429.983.704.3
5646.71174.768162.86814.313.250491133.683.484.1
10046.57194.169041.87531.014.040512235.483.293.9
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (kgf)Efficiency (%)System Efficiency (gf/W)Motor Temperature (°C)
3055.8811.13622.2449.42.10020445.372.238.5
3555.8015.11843.3630.52.62022986.774.767.9
4055.7520.181124.9898.425768.579.867.5
4555.7228.021561.21275.54.190290710.881.706.9
5055.6638.302131.51772.25.210324813.583.146.3
5555.5951.242848.22425.76.550353616.985.175.9
6055.5360.813376.82936.47.280385218.286.965.4
FLUXER VTOL 32.1X12.8"AMPX 200A (5-145)6555.4176.544241.03707.78.700407021.887.425.1
7055.3494.905252.04529.2066′6432825.286.204.8
7555.26115.536384.35477.411.370460028.385.804.4
8055.12134.467411.26284.712.410483531.084.804.2
8554.90162.308910.87439.114.060505334.683.483.9
0654.66193.7810591.68507.015.440526138.780.323.7
5654.59209.5711440.99121.316.430530140.379.733.5
10054.56209.0111403.69072.216.290531839.779.603.5
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (kgf)Efficiency (%)System Efficiency (gf/W)Motor Temperature (°C)
3047.7810.60506.6378.61.96018444.574.738.9
3547.7314.23679.1531.22.44020795.878.228.6
4047.7019.38924.3745.03.04023407.480.618.1
4547.6527.621316.11102.33.97026519.883.767.4
5047.5836.151719.91454.44.700295511.384.566.6
5547.4947.202241.61922.95.700322213.985.786.2
6047.4358.982797.62431.06.700346516.486.905.9
FLUXER PRO 34x11.2"AMPX 300A (5-145)6547.3372.403426.13009.17.790368919.487.835.7
7047.2392.344361.43806.49.280391722.987.285.3
7547.10116.055466.04746.110.900415827.186.835.0
8047.01131.166165.35354.111.620440029.286.844.7
8546.84159.437467.76385.413.250460232.285.514.3
9046.66185.178640.07217.414.360480035.183.544.1
9546.51213.919948.78214.515.730498738.882.573.9
10046.30245.5811370.19128.616.590525539.680.293.5
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (kgf)Efficiency (%)System Efficiency (gf/W)Motor Temperature (°C)
3047.8311.36543.5401.22.15017825.573.8210.1
3547.8215.97763.5590.02.79020197.077.289.2
4047.7022.881091.6865.23.64022709.379.268.5
4547.6631.891519.91252.54.630258311.882.407.8
5047.5843.402064.71712.65.720285914.482.957.0
5547.5354.922610.32173.16.660311817.083.206.5
6047.4071.223375.42825.78.030336020.283.716.0
FLUXER VTOL 34.1X13.6"AMPX 300A (5-14S)6547.3584.183985.83328.28.910356722.583.505.6
7047.25108.195111.34251.310.740378026.383.185.2
7547.10128.966073.95048.712.000401829.883.124.9
8046.97151.577119.55814.713.150422332.681.674.6
8546.80177.738317.86751.014.580442236.081.164.3
9046.61207.249659.07634.815.850460038.979.044.0
5646.37238.7211068.68463.517.080473241.176.463.7
10046.14284.1513111.3698619.150492145.675.273.5
Packing List
DANGER ON/OFFLOCK XC B A)
③ motor propeller pressure plate dowel pin 8.0mmbanana plug heat-shrink tube M5*20motor screws M3*16propeller screws sticker X1 x1 X1 X3 X3 X4 X4 X2
