N-TET

FC-FDJ-85 UAV Engine

Product Overview
Displacement
85cm3
Static thrust
21kg/altitude 100m
Main applications
gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
FC-FDJ-85 UAV engine with displacement 85cm3, power/performance 8.5HP/9000rpm, static thrust 21kg/altitude 100m.

Product Introduction

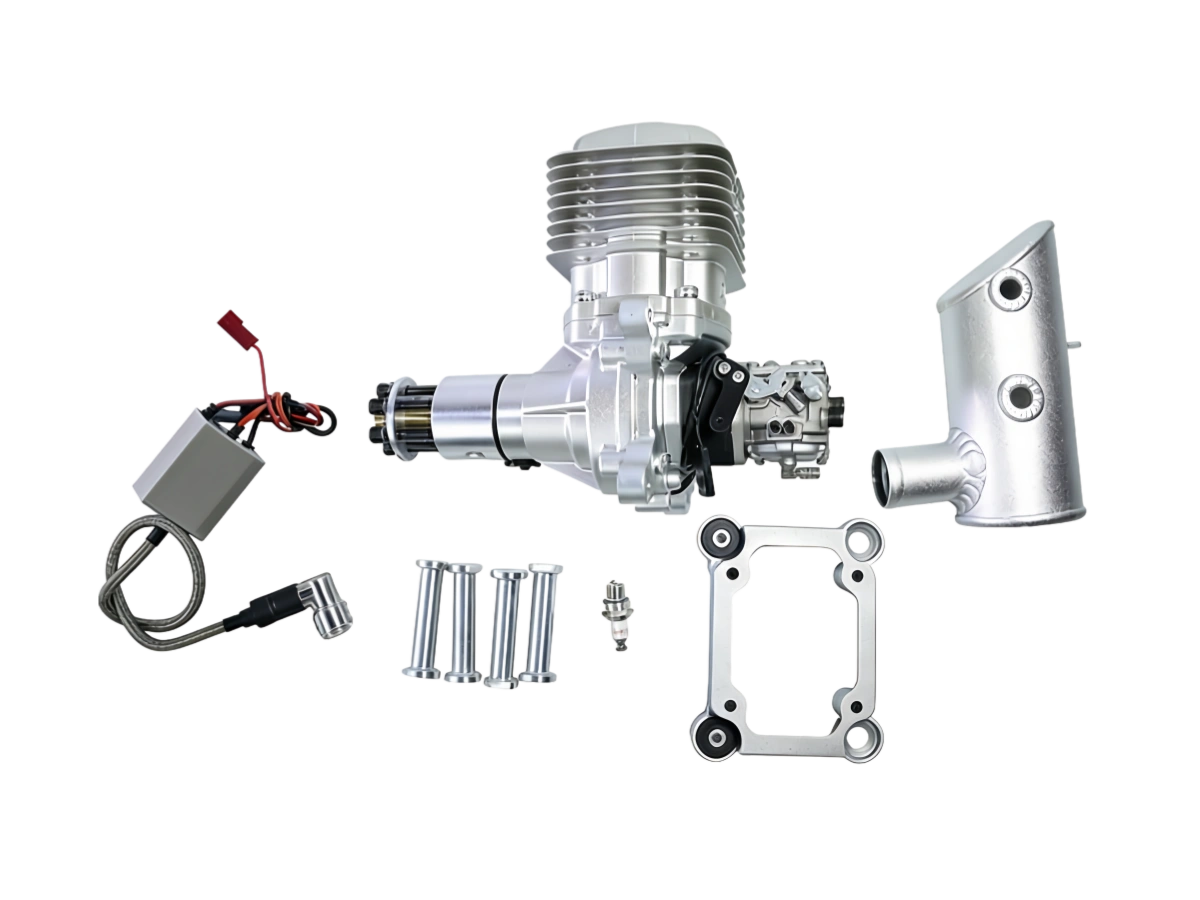

FC-FDJ-85 is an 85CC gasoline model-aircraft engine with a single cylinder, side exhaust, and two-stroke design.

Technical Specifications

ParameterDescription
Performance8.5HP/9000rpm
Idle speed1500 rpm
Static thrust21kg/altitude 100m
Static thrust (2)18kg/altitude 1800m
Recommended propeller25*10; 26*9; 27*8
Spark plug typeNGK CM6
Displacement85cm3
Bore * stroke52mm*40mm
Compression ratio9.5:1
Lubrication ratio30:1
Main engine weight1940g
Exhaust weight250g
Ignition weight140g
Ignition voltage4.8V-8.4V

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.

Home/Drone Accessories/FC-FDJ-85 UAV Engine
FC-FDJ-85 UAV Engine
Displacement: 85cm3
Static thrust: 21kg/altitude 100m
Main applications: gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
Get quotation
FC-FDJ-85 UAV engine with displacement 85cm3, power/performance 8.5HP/9000rpm, static thrust 21kg/altitude 100m.

Overview

Product Introduction

FC-FDJ-85 is an 85CC gasoline model-aircraft engine with a single cylinder, side exhaust, and two-stroke design.

Technical Specifications

Performance8.5HP/9000rpm
Idle speed1500 rpm
Static thrust21kg/altitude 100m
Static thrust (2)18kg/altitude 1800m
Recommended propeller25*10; 26*9; 27*8
Spark plug typeNGK CM6
Displacement85cm3
Bore * stroke52mm*40mm
Compression ratio9.5:1
Lubrication ratio30:1
Main engine weight1940g
Exhaust weight250g
Ignition weight140g
Ignition voltage4.8V-8.4V
