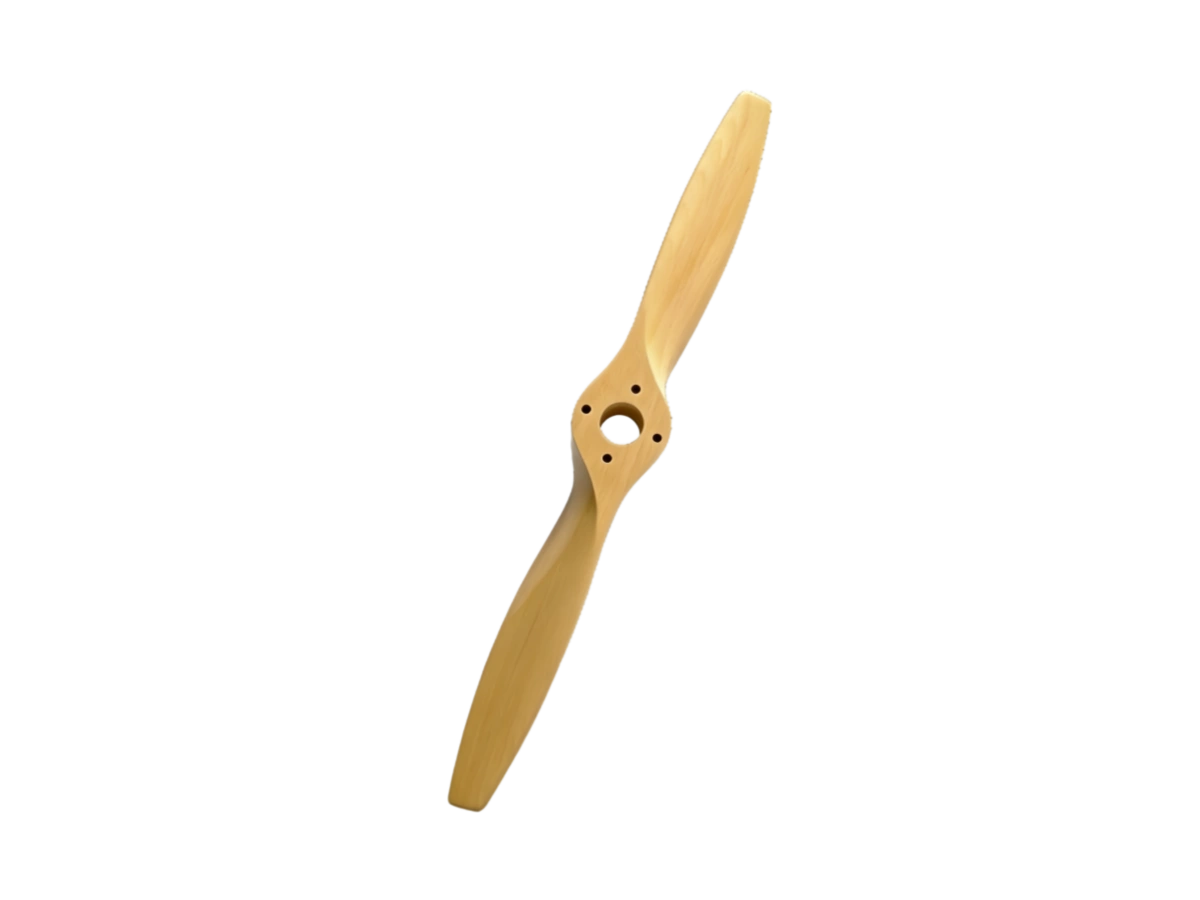

FC-W2U UAV Propeller

FC-W2U UAV Propeller

Product Overview
Dimension range
24~40 in
Max thrust
68.92kgf / peak efficiency: 7.11gf/W
Application
For UAV applications that need an economical imported beechwood propeller with CNC machining.
Get quotationWhatsApp
Dimension range: 24~40 in; maximum thrust: 68.92kgf (5353RPM); peak propeller efficiency: 7.11gf/W (2354RPM).

Economical model, imported beechwood, CNC machining.

Technical Specifications

Dimensions

24~40 in

Test example

Example 33x24 (29.05℃, 1001.1hPa, 46.53%Rh)

Performance table

ParameterDescription
Speed (RPM)2354
Thrust (kgf)12.69
Shaft power (W)1784.30
Propeller efficiency (gf/W)7.11
ParameterDescription
Speed (RPM)2971
Thrust (kgf)20.59
Shaft power (W)3666.38
Propeller efficiency (gf/W)5.62
ParameterDescription
Speed (RPM)3718
Thrust (kgf)32.77
Shaft power (W)7476.88
Propeller efficiency (gf/W)4.38
ParameterDescription
Speed (RPM)4501
Thrust (kgf)49.46
Shaft power (W)14290.64
Propeller efficiency (gf/W)3.46
ParameterDescription
Speed (RPM)5178
Thrust (kgf)64.92
Shaft power (W)24889.54
Propeller efficiency (gf/W)2.61
ParameterDescription
Speed (RPM)5353
Thrust (kgf)68.92
Shaft power (W)27997.16
Propeller efficiency (gf/W)2.46

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.

Home/Drone Accessories/FC-W2U UAV Propeller
FC-W2U UAV Propeller
FC-W2U UAV Propeller
Dimension range: 24~40 in
Max thrust: 68.92kgf / peak efficiency: 7.11gf/W
Applications: For UAV applications that need an economical imported beechwood propeller with CNC machining.
Get quotation
Dimension range: 24~40 in; maximum thrust: 68.92kgf (5353RPM); peak propeller efficiency: 7.11gf/W (2354RPM).

Overview

Economical model, imported beechwood, CNC machining.

Technical Specifications

Dimensions
24~40 in
Test example
Example 33x24 (29.05℃, 1001.1hPa, 46.53%Rh)
Performance table
Speed (RPM)2354
Thrust (kgf)12.69
Shaft power (W)1784.30
Propeller efficiency (gf/W)7.11
Speed (RPM)2971
Thrust (kgf)20.59
Shaft power (W)3666.38
Propeller efficiency (gf/W)5.62
Speed (RPM)3718
Thrust (kgf)32.77
Shaft power (W)7476.88
Propeller efficiency (gf/W)4.38
Speed (RPM)4501
Thrust (kgf)49.46
Shaft power (W)14290.64
Propeller efficiency (gf/W)3.46
Speed (RPM)5178
Thrust (kgf)64.92
Shaft power (W)24889.54
Propeller efficiency (gf/W)2.61
Speed (RPM)5353
Thrust (kgf)68.92
Shaft power (W)27997.16
Propeller efficiency (gf/W)2.46
