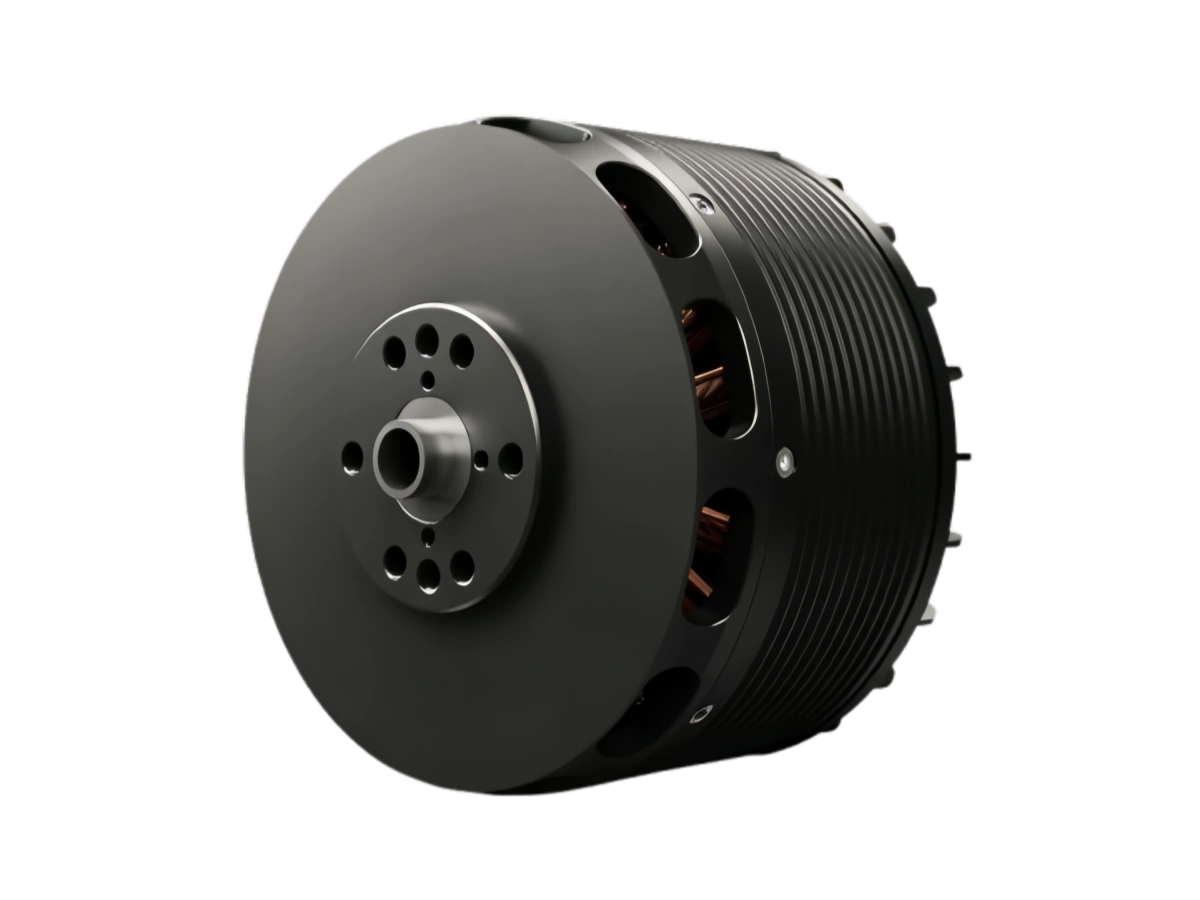

FC-X8030 UAV Motor

FC-X8030 UAV Motor

Product Overview
Max Thrust
22.7 kg / 21.5 kg
Rated Operating Voltage
12S
Application
Hand-wound stator with high slot fill and a clean appearance.; Unique motor structure with 24N28P multi-slot, multi-pole design.
Get quotationWhatsApp
FC-X8030 UAV Motor core parameters: Max Thrust: 22.7 kg / 21.5 kg; Rated Operating Voltage: 12S; KV Value: 160 KV / 190 KV.

Product Introduction

Hand-wound stator with high slot fill and a clean appearance.

Unique motor structure with 24N28P multi-slot, multi-pole design.

Open-frame design maximizes heat dissipation.

Standardized motor mounting holes provide strong compatibility with multiple airframes.

Highly durable premium imported bearings provide stable rotation and better impact resistance.

Technical Specifications

Product Parameters

ParameterDescription
Motor ModelFC-X8030
Pole Pairs14
Stator CoreHigh-quality silicon steel / 180°C high-temperature coating
Winding Wire Grade220°C
Motor DimensionsD:90 ×77.15 mm
Magnet Grade180°C
Protection RatingIP35
Lead Wire Specification100mm ( extended enameled wire ）
Centrifugal Cooling DesignYES
Rotor Dynamic Balance≤20 mg
Propeller Mounting HolesD:20 M3×4，D:30 M5×8 ，M10*1.5 Nut
Motor Dynamic Balance≤30 mg
Shaft DiameterIN: 12 mm
Motor Mounting HolesD:45 M5×4
BearingEZO 6901ZZ*3
Winding Withstand Voltage1000 V

Technical Parameters

ParameterDescription
KV Value160 KV / 190 KV
Rated Operating Voltage12S
No-load Current4.9A / 20V / 6.6A / 20V
Phase-to-phase Resistance9.5mΩ / 7.5mΩ
Motor Weight1158 g / 1142 g
Boxed Weight1658g (186×143×115mm) / 1642g (186×143×115mm)
Max Current139.9 A / 146.1 A
Max Power6348 W / 5870 W
Max Thrust22.7 kg / 21.5 kg
Rated Output Power940 W / 1073 W
Recommended ESCAMPX 150A (5-14S)
Recommended Propeller24x10，25x10，26x12，27x12in / 24x10，25x10
Recommended Takeoff Weight per Axis6.5kg ~ 9.5kg
Recommended Aircraft Takeoff Weight12S-27”/ 4axis38kg, 6axis57kg, 8axis76kg

Test Data

FC-X8030 160KV INDUSTRY PROFESSIONAL EDITION12S
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (gf)System Efficiency (gf/W)Motor Temperature (°C)
3044.075.40239.0129.50.62200618617.8
3543.997.32324.0196.30.81231424847.7
4043.969.78431.9279.41.04256832597.5
4543.8612.14545.5377.51.27283639577.3
5043.8015.98726.4527.41.52331850306.9
5543.6820.85920.7699.71.88354761916.7
6043.5524.001045.2810.02.00386469956.7
25X10AMPX 150A(5-145)6543.4729.621287.61017.22.34415279876.270°℃
7043.3237.351618.01287.92.74449691645.7
7543.2245.411962.61599.53.194782105385.4
8042.9953.832314.21913.83.645028119375.2
8542.7564.642763.42299.14.195243134284.9
9042.5075.323201.12660.14.555584150434.7
5642.2685.213601.02992.44.875867163854.6
10042.0496.334049.73365.35.296074177484.4
PropellerESCThrottle (%)VoltageCurrent (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (gf)System Efficiency (gf/W)Motor Temperature (°C)
3043.966.70294.5182.30.83209323928.1
5543.989.48416.9273.51.10238031167.5
4043.8012.65554.1391.71.40266440697.3
4543.8017.17752.0555.81.77300150856.8
5043.5721.45934.6717.82.05334662196.7
5543.4926.541154.2909.52.38364374656.5
6043.2734.261482.41196.32.9088866.0
26X12AMPX 150A(5-14S)6543.2242.551839.01489.63.404181100305.582°℃
7042.9751.692221.11823.53.904462111145.0
7542.8060.422586.02138.64.314734122984.8
8042.5071.563041.32527.34.815020140844.6
8542.2981.683454.22853.25.175275156174.5
0641.9494.353260.65.735433174554.4
5641.69108.844537.53707.26.245674191044.2
10041.28123.785109.64169.56.845821206664.0
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (gf)System Efficiency (gf/W)Motor Temperature (°C)
3043.997.47328.6211.30.97207127168.3
5544.0011.25495.0332.61.35234832806.6
4043.8314.78647.8469.71.70263841466.4
4543.7818.42806.4608.91.96296353146.6
5043.5622.04960.1752.72.17331265826.9
5543.4827.511196.1940.22.493607L8086.8
6043.2534.481491.31199.02.95388795886.4
27X12AMPX 150A(5-14S)6543.1643.291868.41509.73.464166107495.887℃
7042.9052.232240.71808.24394123625.5
7542.6964.832767.62258.44.634656139145.0
8042.3878.073308.62716.45.294906154834.7
8542.1394.283972.03249.16.055128175104.4
0641.73110.264601.13749.96.705344194924.2
9541.44125.275191.24168.57.135586208354.0
10041.14139.735748.54598.87.665736227343.9
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (gf)System Efficiency (gf/W)Motor Temperature (°C)
3051.926.53339.0184.80.72246522036.5
3551.848.90461.4276.860285528766.2
4051.7812.63654.0440.11.29326440136.1
4551.7216.74865.8612.11.60366050665.9
5051.5621.281097.2814.11.93403361125.6
5551.5426.021341.11016.52.23434773475.5
6051.3532.561621.31258.12.56469184195.2
24X10AMPX 150A(5-14S)6551.2539.212004.21593.33.03501995624.8101℃
7051.0547.752417.51958.23.485377107804.5
7550.8857.412921.02389.44.005706128404.4
8050.6368.273407.22804.14.436040143344.2
8550.4179.343283.64.916388162764.1
0650.1293.284404.83634.05.166720178274.0
5649.87107.545363.04408.46.036979195263.6
10049.50121.406009.34933.66.657090208403.5
PropellerESCThrottle (%)Voltage (V)Current (A)Input Power (W)Output Power (W)Torque (N×m)Speed (RPM)Thrust (gf)System Efficiency (gf/W)Motor Temperature (°C)
3052.057.12370.6218.30.85245825416.9
3551.869.65500.4328.31.11283534156.8
4051.8513.53701.5492.51.46322244846.4
4551.6718.12936.3696.61.84362056416.0
5051.6322.841179.2902.12.16399669645.9
5551.4527.671423.61114.72.47431081455.7
6051.3634.651779.61413.02.90465695315.4
25X10AMPX 150A(5-14S)6551.1243.942246.21810.43.474989110124.9105°℃
7051.0151.032603.02124.13.825306125514.8
7550.7560.123051.12511.04.255638140844.6
8050.5470.463561.02937.94.715956160334.5
8550.2183.964215.63486.35.316275179694.3
9049.9496.224805.23935.55.796491199584.2
9549.51110.155453.54471.96742217794.0
10049.30128.766347.95154.57.126911225033.6
Packing List
motor X1propeller pressure plate propeller hub cross cover 6.0mmbanana plug heat-shrink tube X1 x1 X1 X3 X3 OANGER AO
X4M5*12motor screws M5*25propeller hub screws M5*12bracket screws M10nut sticker X4 X4 x1 X2
