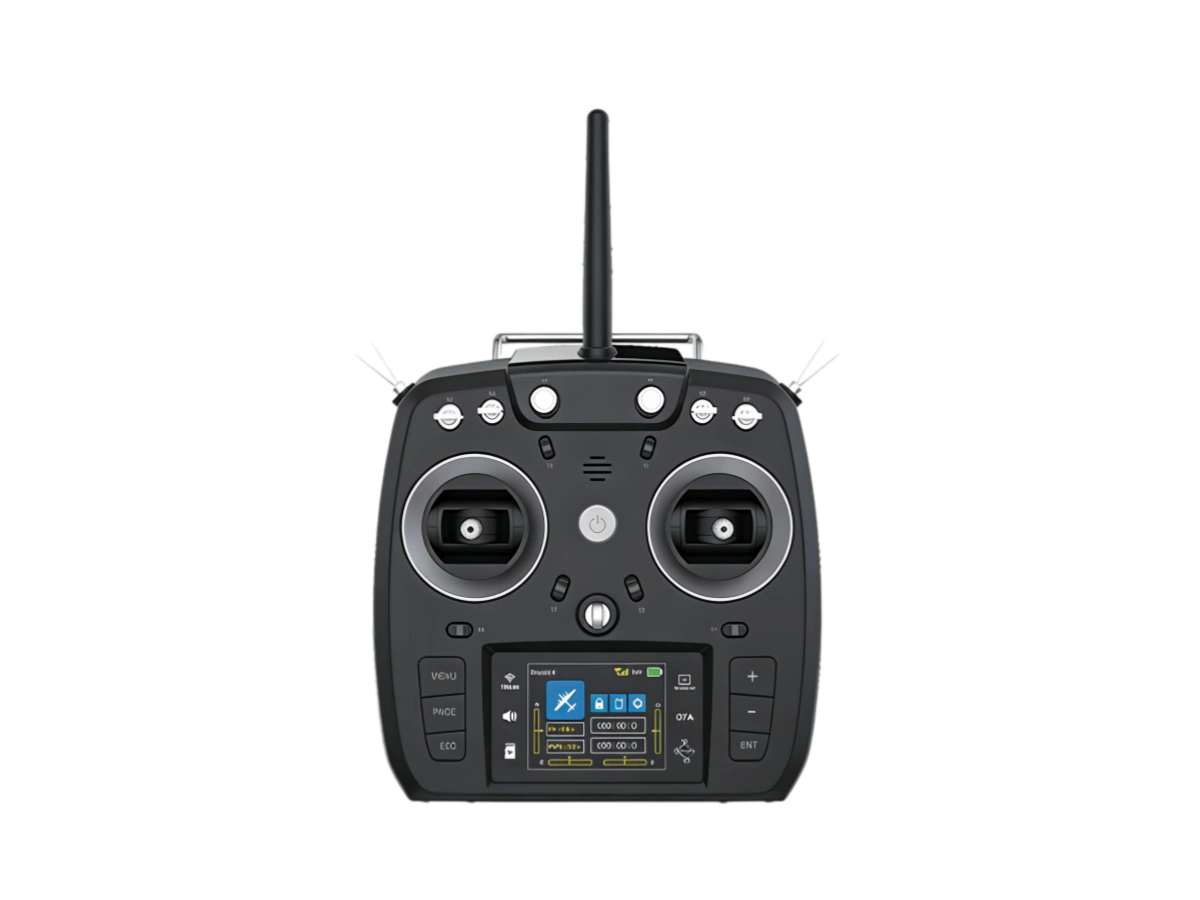

FC-YK24 UAV Remote Controller
Product Overview
16 channels + 15km, a high-freedom model-aircraft remote controller. It integrates industrial anti-interference RF and adaptive frequency-hopping technology to achieve stable 15km beyond-visual-range control in forests, garages, and other environments. Strong wireless functions support wireless binding, wireless receiver-parameter configuration, wireless copying, OTA wireless upgrade, multi-aircraft control, and relay control. Its wireless trainer mode removes cable connections between instructor and student controllers. It supports fixed-wing aircraft, helicopters, gliders, multirotors, vehicles, boats, programmable remote control, a standard rear expansion interface, and flexible model-control use.
Key Selling Points
- 15 km beyond-visual-range control: adaptive anti-interference
- Multi-aircraft control: relay control
- Wireless trainer mode
- UAV/vehicle/boat: multi-model control
Product Parameters
| Parameter | Value |
|---|---|
| Maximum Communication Range (No Interference, Unobstructed) | 15 km |
| Communication Frequency | 2.4 GHz |
| Signal Channels | 16 |
| Antenna Gain | 2 dbi |
| Rated Working Current | 210 mA |
| Dimensions | 191 x 175 x 64mm |
| Weight | 586 g |
| Battery | 18650 *2 cells or 2S Lipo battery |
| Supported Devices | UAV, helicopter, glider, vehicle, boat |
| FR Receiver - Signal Output | 16-channel S.Bus, 8-channel PPM, 8-channel PWM |
| FR Receiver - Data Interface | UART |
| FR Receiver - Operating Voltage Range | 5 V-8.4 V |
| FR Mini Receiver - Signal Output | 16-channel S.Bus, 8-channel PPM |
| FR Mini Receiver - Data Interface | UART |
| FR Mini Receiver - Operating Voltage Range | 5 V |
Technical Specifications
