N-TET

FC-FDJ-170 UAV Engine

Product Overview
Displacement
170cm3
Static thrust
35kg/altitude 100m
Main applications
gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
FC-FDJ-170 UAV engine with displacement 170cm3, power/performance 17.5HP/7500rpm, static thrust 35kg/altitude 100m.

Product Introduction

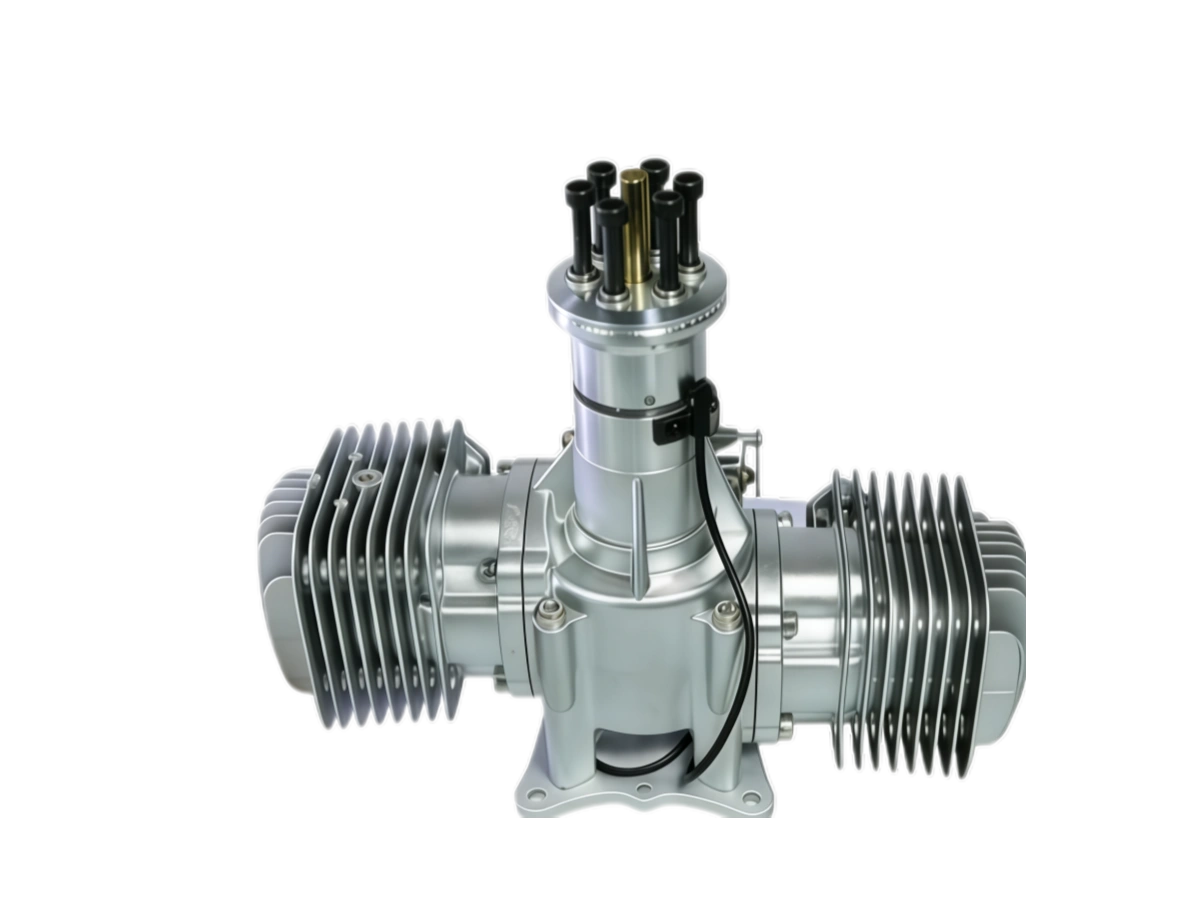

FC-FDJ-170 is a 170CC gasoline model-aircraft engine with a two-cylinder, two-stroke design.

Technical Specifications

ParameterDescription
Performance17.5HP/7500rpm
Idle speed1100 rpm
Static thrust35kg/altitude 100m
Static thrust (2)31.5kg/altitude 1800m
Recommended propeller30*12; 32*10
Spark plug typeNGK CM6
Displacement170cm3
Bore * stroke52mm*40mm
Compression ratio9.5:1
Lubrication ratio30:1
Main engine weight3620g
Exhaust weight470g
Ignition weight190g
Ignition voltage4.8V-8.4V

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.

Home/Drone Accessories/FC-FDJ-170 UAV Engine
FC-FDJ-170 UAV Engine
Displacement: 170cm3
Static thrust: 35kg/altitude 100m
Main applications: gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
Get quotation
FC-FDJ-170 UAV engine with displacement 170cm3, power/performance 17.5HP/7500rpm, static thrust 35kg/altitude 100m.

Overview

Product Introduction

FC-FDJ-170 is a 170CC gasoline model-aircraft engine with a two-cylinder, two-stroke design.

Technical Specifications

Performance17.5HP/7500rpm
Idle speed1100 rpm
Static thrust35kg/altitude 100m
Static thrust (2)31.5kg/altitude 1800m
Recommended propeller30*12; 32*10
Spark plug typeNGK CM6
Displacement170cm3
Bore * stroke52mm*40mm
Compression ratio9.5:1
Lubrication ratio30:1
Main engine weight3620g
Exhaust weight470g
Ignition weight190g
Ignition voltage4.8V-8.4V
