N-TET

FC-FDJ-60 UAV Engine

Product Overview
Displacement
61cm3
Static thrust
15.2kg/altitude 100m
Main applications
gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.

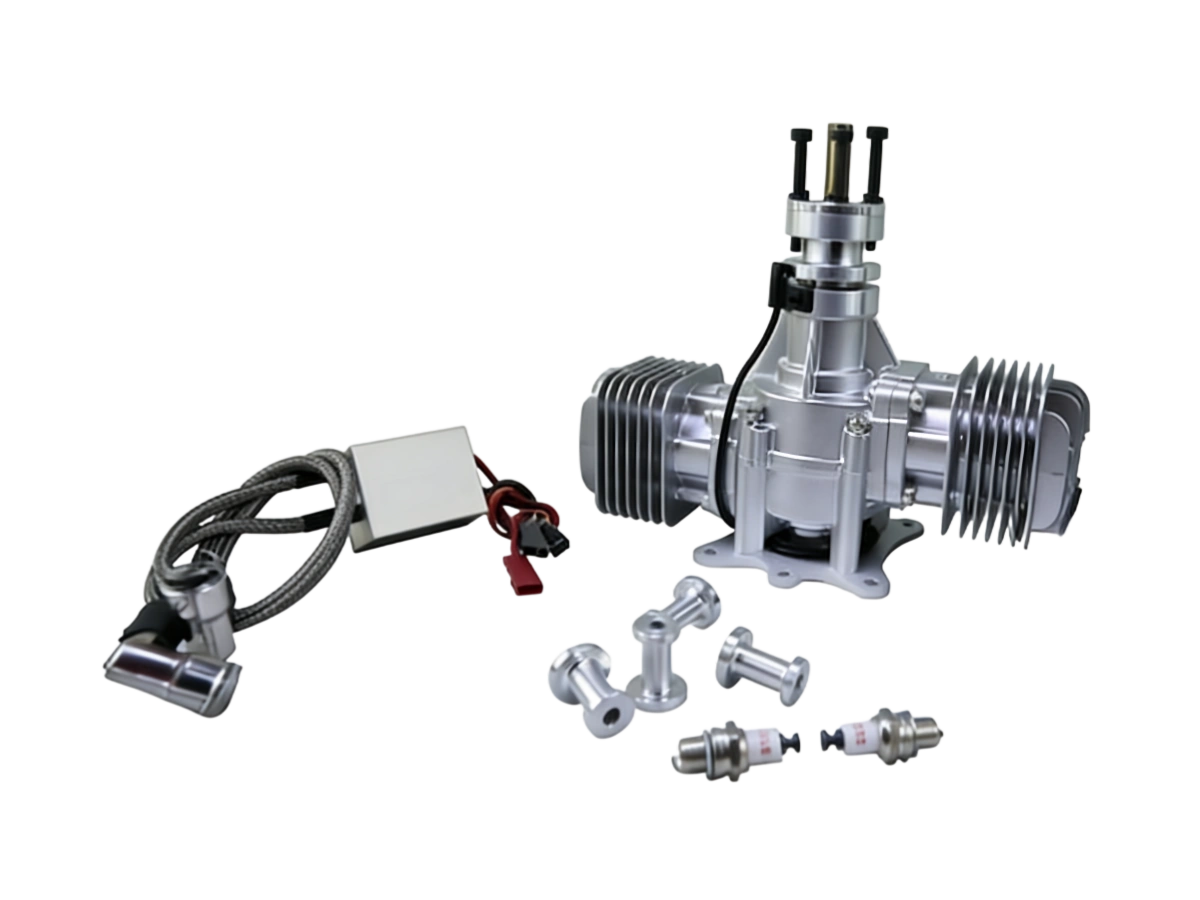

FC-FDJ-60 UAV engine with displacement 61cm3, power/performance 7HP/8500rpm, static thrust 15.2kg/altitude 100m.

Product Introduction

FC-FDJ-60 is a 60CC gasoline model-aircraft engine with a two-cylinder, two-stroke design.

Technical Specifications

ParameterDescription
Performance7HP/8500rpm
Idle speed1400 rpm
Static thrust15.2kg/altitude 100m
Static thrust (2)13.5kg/altitude 1800m
Recommended propeller22*10; 23*8; 23*10; 24*8
Spark plug typeNGK CM6
Displacement61cm3
Bore * stroke36mm*30mm
Compression ratio7.6:1
Lubrication ratio30:1
Main engine weight1560g
Exhaust weight200g
Ignition weight190g
Ignition voltage4.8V-8.4V

Get Solution & Quotation

Please fill out the form below, and we can satisfy any of your needs including equipment selection, custom solution design, technical support, or after-sales service. We will contact you as soon as possible.

Home/Drone Accessories/FC-FDJ-60 UAV Engine
FC-FDJ-60 UAV Engine
Displacement: 61cm3
Static thrust: 15.2kg/altitude 100m
Main applications: gasoline engine power systems for model aircraft and industrial UAV platforms requiring displacement, thrust, and endurance-oriented propulsion.
Get quotation
FC-FDJ-60 UAV engine with displacement 61cm3, power/performance 7HP/8500rpm, static thrust 15.2kg/altitude 100m.

Overview

Product Introduction

FC-FDJ-60 is a 60CC gasoline model-aircraft engine with a two-cylinder, two-stroke design.

Technical Specifications

Performance7HP/8500rpm
Idle speed1400 rpm
Static thrust15.2kg/altitude 100m
Static thrust (2)13.5kg/altitude 1800m
Recommended propeller22*10; 23*8; 23*10; 24*8
Spark plug typeNGK CM6
Displacement61cm3
Bore * stroke36mm*30mm
Compression ratio7.6:1
Lubrication ratio30:1
Main engine weight1560g
Exhaust weight200g
Ignition weight190g
Ignition voltage4.8V-8.4V
