Inicio > Productos > FC-RC Series HD Long-Range Laser Camera

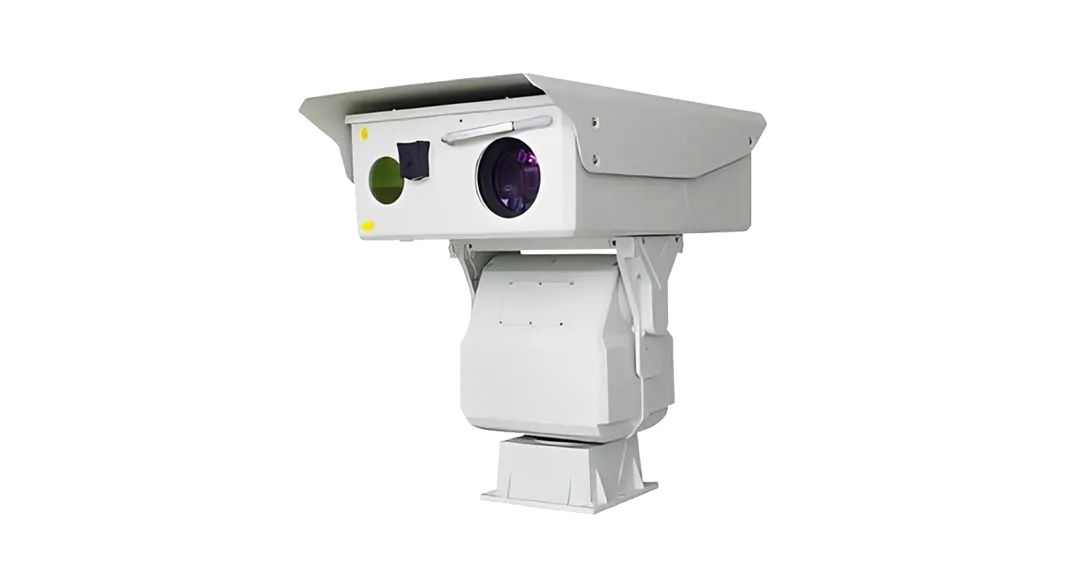

FC-RC Series HD Long-Range Laser Camera

FC-RC Series HD Long-Range Laser Camera

Resumen del producto
Illumination Range
1,000m – 3,000m
Resolution
4MP (2688×1520)
Aplicaciones principales
Applications: fronterizo and coastal surveillance; Long-range night vision for oilfields and power grids; Forest fire prevention; Port and maritime traffic monitoring; Critical facility perimeter security.
Solicitar cotizaciónWhatsApp
FC-RC Series HD Long-Range Laser Camera de N-TET para monitoreo, con integración práctica, registros operativos y soporte de despliegue para equipos técnicos.

Características

  • FC-RC Series HD Long-Range Laser Camera está diseñado para operaciones industriales con despliegue práctico en campo.
  • FC-RC Series HD Long-Range Laser Camera de N-TET para monitoreo, con integración práctica, registros operativos y soporte de despliegue para equipos técnicos.
  • La configuración puede integrarse con flujos de inspección, registro de eventos y soporte técnico del proyecto.

Especificaciones técnicas

ParámetroDescripción
Visible Light1. Sensor: Back-illuminated ultra-low illumination starlight-grade CMOS 2. Resolution: 1920×1080 3. Illumination: Color: 0.0005Lux; B/W: 0.0001Lux; 0Lux (IR ON) 4. Lens Focal Length: 11mm～860mm/12.5mm～750mm/16.7mm～1000mm/12mm～1000mm 5. Lens Control: Supports motorized zoom, manual/auto focus 1. Sensor: Back-illuminated ultra-low illumination starlight-grade CMOS 2. Resolution: 1920×1080 3. Illumination: Color: 0.0005Lux; B/W: 0.0001Lux; 0Lux (IR ON) 4. Lens Focal Length: 7mm～300mm 5. Lens Control: Supports motorized zoom, manual/auto focus 1. Sensor: Back-illuminated ultra-low illumination starlight-grade CMOS 2. Resolution: 2688×1520 3. Illumination: Color: 0.0005Lux; B/W: 0.0001Lux; 0Lux (IR ON) 4. Lens Focal Length: 11mm～860mm/12mm～1000mm 5. Lens Control: Supports motorized zoom, manual/auto focus
Laser Illumination1. Laser Type: 808nm (10W, 15W, 20W) 2. Illumination Angle: 1°～20°/0.5°～20°/0.3°～20° 3. Illumination Distance: 1000m～3000m 4. Spot Form: Elliptical spot illuminator is optional for focal length above 500mm, the spot continuously keeps an elliptical shape during the change process, which better matches the 16:9 HD camera frame, increasing the laser utilization rate by 30%
PTZ1. Horizontal Rotation Range: 360° continuous rotation 2. Tilt Rotation Range: -45°～+45° 3. Horizontal Rotation Speed: 0.01°/s～30°/s 4. Tilt Rotation Speed: 0.01°/s～15°/s 5. Presets: No less than 255
Intelligent Analysis1. Intelligent Analysis: Supports region intrusion detection, tripwire intrusion detection, motion detection, cruise detection, loitering detection, gathering detection, stay detection, and reverse direction detection 2. Auto Tracking: Supports multi-scene tracking, alarm linkage tracking
Interfaces1. Power Supply Interface: 1-ch DC24V 2. Communication Interface: 1-ch RJ45 network port
Eléctrica Consumption1. Power Consumption: ≤200W
Weight1. Weight: ≤50kg
Environmental Adaptability1. Working Temperature: -25℃～60℃ 2. Working Humidity: ≤95% RH 3. Protection Level: IP66
Customization1. Supports customized function development

Solicitar solución y cotización

Please fill out the form below, and we can satisfy any of your needs including e de N-TET para operaciones industriales, monitoreo de campo, soporte de proyectos, con integración práctica, registros operativos y soporte de despliegue para equipos técnicos.

Inicio/Productos/FC-RC Series HD Long-Range Laser Camera
FC-RC Series HD Long-Range Laser Camera
FC-RC Series HD Long-Range Laser Camera
Illumination Range: 1,000m – 3,000m
Resolution: 4MP (2688×1520)
Aplicaciones principales: Applications: fronterizo and coastal surveillance; Long-range night vision for oilfields and power grids; Forest fire prevention; Port and maritime traffic monitoring; Critical facility perimeter security.
Solicitar cotización
FC-RC Series HD Long-Range Laser Camera de N-TET para monitoreo, con integración práctica, registros operativos y soporte de despliegue para equipos técnicos.

Resumen

Características

  • FC-RC Series HD Long-Range Laser Camera está diseñado para operaciones industriales con despliegue práctico en campo.
  • FC-RC Series HD Long-Range Laser Camera de N-TET para monitoreo, con integración práctica, registros operativos y soporte de despliegue para equipos técnicos.
  • La configuración puede integrarse con flujos de inspección, registro de eventos y soporte técnico del proyecto.

Especificaciones técnicas

Visible Light1. Sensor: Back-illuminated ultra-low illumination starlight-grade CMOS 2. Resolution: 1920×1080 3. Illumination: Color: 0.0005Lux; B/W: 0.0001Lux; 0Lux (IR ON) 4. Lens Focal Length: 11mm～860mm/12.5mm～750mm/16.7mm～1000mm/12mm～1000mm 5. Lens Control: Supports motorized zoom, manual/auto focus 1. Sensor: Back-illuminated ultra-low illumination starlight-grade CMOS 2. Resolution: 1920×1080 3. Illumination: Color: 0.0005Lux; B/W: 0.0001Lux; 0Lux (IR ON) 4. Lens Focal Length: 7mm～300mm 5. Lens Control: Supports motorized zoom, manual/auto focus 1. Sensor: Back-illuminated ultra-low illumination starlight-grade CMOS 2. Resolution: 2688×1520 3. Illumination: Color: 0.0005Lux; B/W: 0.0001Lux; 0Lux (IR ON) 4. Lens Focal Length: 11mm～860mm/12mm～1000mm 5. Lens Control: Supports motorized zoom, manual/auto focus
Laser Illumination1. Laser Type: 808nm (10W, 15W, 20W) 2. Illumination Angle: 1°～20°/0.5°～20°/0.3°～20° 3. Illumination Distance: 1000m～3000m 4. Spot Form: Elliptical spot illuminator is optional for focal length above 500mm, the spot continuously keeps an elliptical shape during the change process, which better matches the 16:9 HD camera frame, increasing the laser utilization rate by 30%
PTZ1. Horizontal Rotation Range: 360° continuous rotation 2. Tilt Rotation Range: -45°～+45° 3. Horizontal Rotation Speed: 0.01°/s～30°/s 4. Tilt Rotation Speed: 0.01°/s～15°/s 5. Presets: No less than 255
Intelligent Analysis1. Intelligent Analysis: Supports region intrusion detection, tripwire intrusion detection, motion detection, cruise detection, loitering detection, gathering detection, stay detection, and reverse direction detection 2. Auto Tracking: Supports multi-scene tracking, alarm linkage tracking
Interfaces1. Power Supply Interface: 1-ch DC24V 2. Communication Interface: 1-ch RJ45 network port
Eléctrica Consumption1. Power Consumption: ≤200W
Weight1. Weight: ≤50kg
Environmental Adaptability1. Working Temperature: -25℃～60℃ 2. Working Humidity: ≤95% RH 3. Protection Level: IP66
Customization1. Supports customized function development
