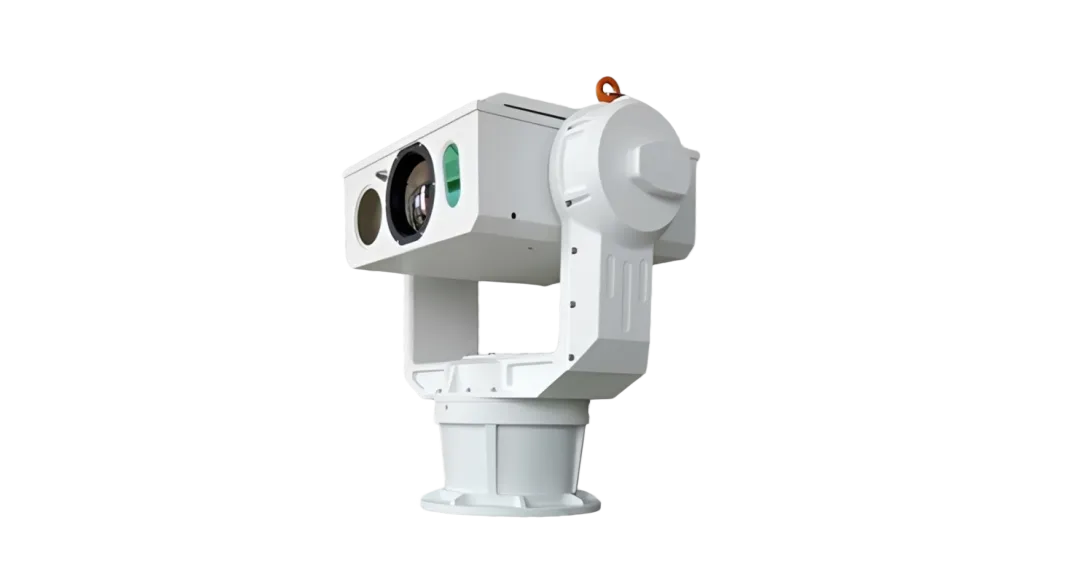

FC-DMA Multi-Spectral EO/IR PTZ Turret

FC-DMA Multi-Spectral EO/IR PTZ Turret

Resumen del producto
Aplicaciones principales
Applications: costero and border seguridad; Low-altitude airspace monitoring and tracking; Long-range 24/7 situational awareness; Radar-guided autonomous tracking.
Solicitar cotizaciónWhatsApp
FC-DMA Multi-Spectral EO/IR PTZ Turret de N-TET para seguridad de sitio, operaciones UAV, con integración práctica, registros operativos y soporte de despliegue para equipos técnicos.

Características

  • FC-DMA Multi-Spectral EO/IR PTZ Turret está diseñado para operaciones industriales con despliegue práctico en campo.
  • FC-DMA Multi-Spectral EO/IR PTZ Turret de N-TET para seguridad de sitio, operaciones UAV, con integración práctica, registros operativos y soporte de despliegue para equipos técnicos.
  • La configuración puede integrarse con flujos de inspección, registro de eventos y soporte técnico del proyecto.

Especificaciones técnicas

ParámetroDescripción
Uncooled Thermal Imaging (Optional)1. Detector: 6th generation uncooled focal plane array VOx detector 2. Resolution: 640×512/1280×1024 optional 3. Wavelength: 8μm～14μm 4. NETD: Better than 40mK (@25℃ F1.0) 5. Lens Focal Length: 21～105mm, 30～120mm, 31～155mm, 23～230mm continuous zoom lens optional; 25～150mm, 30～180mm, 23～230mm HD continuous zoom lens optional 6. Lens Control: Supports motorized zoom, manual/auto focus
Cooled Thermal Imaging (Optional)1. Detector: Cooled focal plane array MCT detector 2. Spectral Range: 3.7μm～4.8μm 3. Resolution: 640×512 4. NETD: Better than 20mK 5. Lens Focal Length: 15～300mm, 22～450mm, 30～600mm, 40～800mm, 90～1100mm continuous zoom lens optional 6. Lens Control: Supports motorized zoom, manual/auto focus
HD Visible Light1. Sensor: Ultra-low illumination starlight-grade CMOS 2. Resolution: 1920×1080 3. Lens Focal Length: 7～300mm, 25～500mm, 12.5～750mm, 16.7～1000mm HD motorized zoom lens optional 4. Lens Control: Supports motorized zoom, manual/auto focus 5. Image Enhancement: Supports wide dynamic range, strong light response support, electronic image stabilization, 3D digital noise reduction, auto white balance and other functions 6. Defogging: Supports electronic dual defogging
Laser Illumination1. Wavelength: 808nm/940nm 2. Power: 808nm: 10W/15W/20W/25W optional, 940nm: 10W/18W optional 3. Illumination Angle: 1.14°～28°/0.46°～22.6°/0.4°～30° optional 4. Illumination Distance: 1000m/3000m
Laser Ranging1. Ranging Range: 50m～3000m/50m～5000m/100m～10000m 2. Ranging Accuracy: ±3m 3. Frequency: 1Hz
Servo Turntable1. Structure: U-shaped, two-axis two-frame 2. Horizontal Range: N×360° continuous rotation, can be mechanically locked after power off 3. Tilt Range: -90°～+90°, with soft limit function, programmable 4. Rotation Speed: Horizontal 0.01°～80°/s, Tilt 0.01°～60°/s 5. Positioning Accuracy: Better than 0.02° 6. Presets: No less than 255
Seguimiento Function1. Tracking Method: Front-end embedded hardware tracking or back-end software tracking 2. Tracking Function: Supports multi-target detection, auto-capture, brief occlusion, etc.
Intelligent Analysis (Optional)1. Abnormal Behavior Detection: Supports region intrusion detection, tripwire intrusion detection, motion detection, cruise detection, as well as loitering detection, gathering detection, stay detection, reverse direction detection, etc. 2. Classification and Recognition: Supports classification and recognition of targets such as people, vehicles, and drones (requires customer assistance to provide datasets)
Interfaces1. Power Supply Interface: AC220V to DC48V 2. Communication Interface: 1-ch RJ45 network port
Eléctrica Consumption1. Power Consumption: Max ≤500W, stable ≤150W
Weight1. Weight: ≤65kg (excluding optical load)
Dimensions1. Dimensions: 572mm×472mm×655mm (reference, specifically depends on configuration)
Environmental Adaptability1. Working Temperature: -40℃～60℃ 2. Working Humidity: ≤95% RH 3. Protection Level: IP66
Customization1. Supports customized function development
